Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 56C Frame, 115/230V AC Voltage MPN:T32C2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0197848

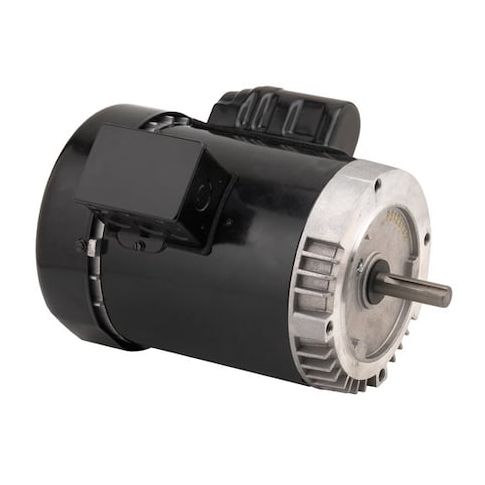

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 56C Frame, 115/230V AC Voltage
This 1.5 HP capacitor-start motor is a reliable and efficient solution for a variety of applications, including industrial machinery, pumps, and fans. With a single phase design and 115/230V AC voltage, it can be used in a range of settings. The motor's totally enclosed fan-cooled design ensures quiet operation and long lifespan, while its continuous duty cycle and 1.15 service factor make it suitable for heavy use. Its compact 56C frame and 14.4/8.7 amp rating make it easy to integrate into existing systems, making it an ideal choice for manufacturers and installers looking for a reliable and efficient motor solution.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor reliability and reduced maintenance
- Continuous Duty Cycle capability for high workload applications
- Single Phase, Capacitor-Start motor design for efficient operation and reduced energy consumption
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.4/8-7.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 12.00
- Package Height: 11.80
- Package Weight: 43.85
Product info last updated on February 11, 2026 5:02pm UTC
Category: Motors
