Capacitor-Start General Purpose Motor, 3/4 hp HP, 56C Frame, 115/230V AC Voltage MPN:D34CPA2PCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0197820

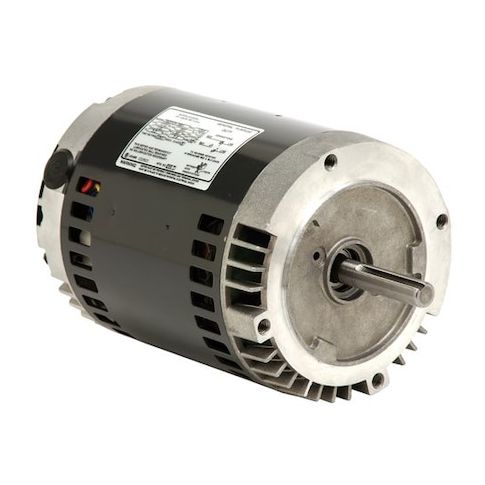

Capacitor-Start General Purpose Motor, 3/4 hp HP, 56C Frame, 115/230V AC Voltage
This 3/4 hp capacitor-start general purpose motor from US Motors is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, this motor provides 1,725 RPM and 7.0/3.5 A full load amps. With a 56C frame and open drip proof enclosure, it is designed for continuous duty cycles and can withstand temperatures up to 40 degrees C. Ideal for use in industrial settings, commercial facilities, and residential areas, this motor is also suitable for applications such as pumps, fans, and conveyor systems, offering a cost-effective and durable solution for your motor needs.
Top product features:
- Capacitor-start design for efficient starting and running
- Single-phase operation for simple installation and connection
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.30
- Package Height: 12.00
- Package Weight: 33.40
Product info last updated on February 28, 2026 1:24pm UTC
Category: Motors
