Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM MPN:D1P2AHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0197805

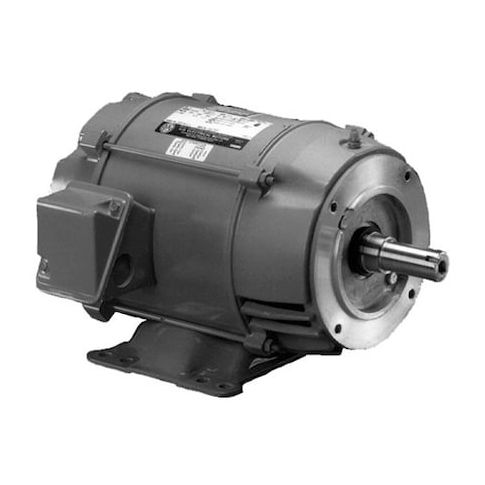

Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM
This 1 HP, three-phase general purpose motor from US Motors is designed for a variety of applications, including industrial and commercial use. Its 56HC frame and open air over motor enclosure design make it ideal for applications where space is limited. With a nameplate RPM of 1,725 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its high efficiency and continuous duty rating make it a reliable choice for applications such as pumps, fans, and conveyor systems. Its compact size and rugged design also make it suitable for use in harsh environments.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Open air over motor enclosure design provides a protective and ventilated environment for the motor.
- Ball motor bearings ensure smooth and durable operation.
Top product applications:
- Industrial Automation
- Pump Applications
- Material Handling
General Purpose Motor, Three-Phase, Open Air Over Motor Enclosure Design, 1 HP, Nameplate RPM 1,725, Frame 56HC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2-3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.3 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 26.00
Product info last updated on January 18, 2026 5:42am UTC
Category: Motors
