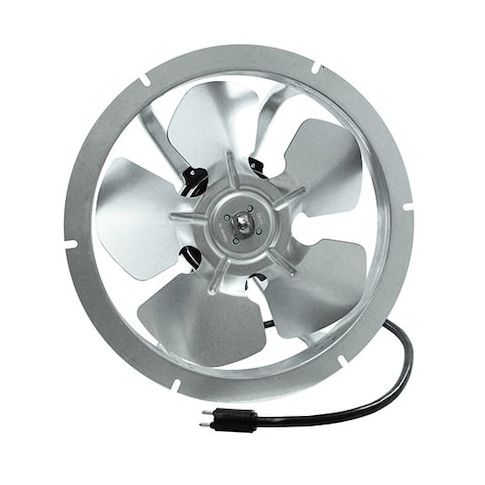

ECM with Fan Pack, 115/230V AC, Single Phase MPN:EC5470FP
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000451601
ECM with Fan Pack, 115/230V AC, Single Phase
This efficient ECM motor with fan pack is designed for single-phase applications and operates at 115/230V AC. With a compact 33 frame and totally enclosed air-over design, it excels in harsh environments. The motor's 1/30 HP rating and 1,550 nameplate RPM make it suitable for a variety of uses, including ventilation systems, air conditioning units, and industrial equipment. Its auto thermal protection and Class A insulation ensure reliable operation. With a maximum ambient temperature of 131°F, this motor can withstand demanding conditions, making it an ideal choice for applications requiring high performance and durability.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris
- Motor thermal protection is automatically activated to prevent overheating
- The motor is designed with a steel frame and has a stud mounting type for secure installation
Top product applications:
- Industrial automation systems
- Pump and fan applications
- Air handling systems
ECM with Fan Pack, Single Phase, Motor Design ECM, 1/30 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/230V AC, 0.09/0.06 A Full Load Amps, 33 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 131 Degrees F, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Length 7/16 in, Shaft Dia. 1/4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 5.10
- Package Height: 11.50
- Package Weight: 6.60
Product info last updated on January 12, 2026 10:17pm UTC
Category: Fans
