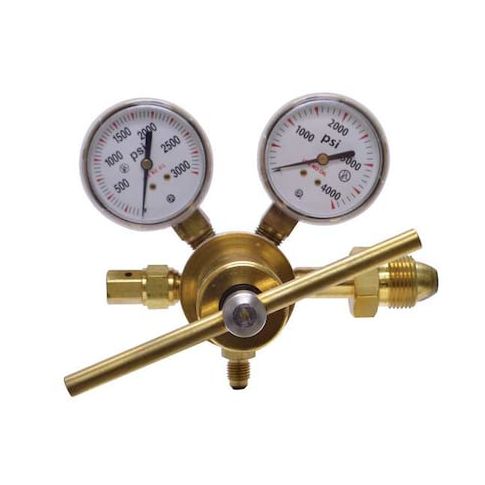

Regulator Spec 1-Stage Nit CGA580, Nitrogen, Single Stage, 1/4 in Outlet MPN:RHP1500
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G804407460
Regulator Spec 1-Stage Nit CGA580, Nitrogen, Single Stage, 1/4 in Outlet
This 1-stage nitrogen regulator is designed for high-pressure applications and features a durable piston-actuated seat for long-lasting performance. The easy-to-read gauge with steel case construction and polycarbonate lens provides clear pressure readings. Compatible with nitrogen gas, this regulator is ideal for use in industries such as manufacturing, oil and gas, and healthcare. The compact design and 1/4 inch NPT outlet connection make it easy to integrate into existing systems. With a maximum inlet pressure of 3,000 psig and maximum outlet pressure of 1,500 psig, this regulator is built to handle demanding applications with ease and precision.
Top product features:
- Easy to Read Gauge with Steel Case Construction with Polycarbonate Lens
- Piston Actuated Seat for Durability
- Outlet Connection is a Female 1/4 in NPT Connection
Top product applications:
- High Pressure
- High Pressure
- High Pressure
Regulator Spec 1-Stage Nit CGA580, Number of Stages Single Stage, Compatible Gas Type Nitrogen, Control Type T-Handle, Maximum Inlet Pressure 3,000 psig, Outlet Pressure (Maximum) 1,500 psig, Outlet Connection Gender Female, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Body Material Brass, CGA Number CGA 580, Application High Pressure, Features Easy to Read Gauge with Steel Case Construction with Polycarbonate Lens, Piston Actuated Seat for Durability, Protective Rubber Gauge Boots
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 7.60
- Package Height: 7.90
- Package Weight: 3.95
Product info last updated on February 26, 2026 2:33am UTC
Category: Cutting Torches and Regulators
