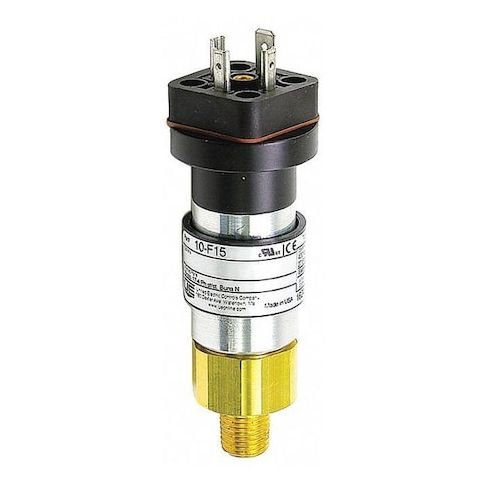

Pressure Switch MPN:10F15
Pressure Switch
This reliable Pressure Switch from United is designed for a wide range of applications, including industrial, commercial, and residential use. Its robust construction and IP65 rating ensure durability and protection against harsh environments. With a maximum operating temperature of 160°F and a maximum pressure rating of 8,000 psi, this switch can handle demanding pressure settings up to 4,700 psi. Its versatility makes it suitable for use with various voltage types, including AC and DC, and multiple frequencies, making it an ideal choice for a variety of industries and applications.
Top product features:
- Contact Form SPDT
- Operates at 0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, and 5 A @ 125V AC Resistive
- Rated for use with pressures up to 8,000 psi and a maximum pressure setting of 4,700 psi
Top product applications:
- Pressure Switch can be used in industrial applications such as monitoring and controlling pressure in hydraulic systems and pneumatic systems.
- Pressure Switch can be used in medical equipment such as ventilators and defibrillators to monitor and control pressure and flow rates.
- Pressure Switch can be used in aerospace applications such as monitoring and controlling pressure in fuel systems and hydraulic systems.
Pressure Switch, Contact Form SPDT, Electrical Rating 0.25 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 mA @ 24V DC, 2 mA @ 12V DC, 3 A @ 30V DC Inductive, 5 A @ 125/250V AC Inductive, 5 A @ 125V AC Resistive, 5 A @ 30V DC Resistive, 5 mA @ 6V DC, Housing Material Aluminum, IP Rating IP65, Input Voltage 125V AC, 125V DC, 12V DC, 24V DC, 250V AC, 30V DC, 6V DC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 8,000 psi, Maximum Pressure Setting 4,700 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 2.60
- Package Height: 2.40
- Package Weight: 0.51
Product info last updated on February 14, 2026 11:33am UTC
Category: HVAC Parts
