Twist-On Wire Connector, 8 AWG Max, Red, Yellow, 1, 000 V, 50 PK MPN:30-1047
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G506629245

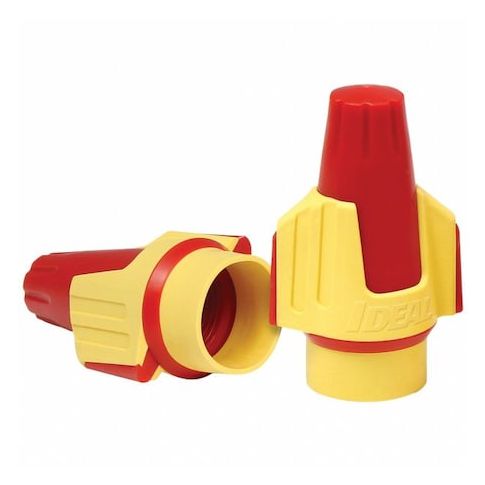

Twist-On Wire Connector, 8 AWG Max, Red, Yellow, 1, 000 V, 50 PK
Effortlessly connect wires with the reliable Twist-On Wire Connector from TWISTER. Ideal for electrical applications, this connector features a simple twist-on design for easy installation and a secure connection. With a maximum operating temperature of 221°F and a voltage rating of 1,000V, it's perfect for use in a variety of settings, including industrial, commercial, and residential projects. The connector's durable construction and UL listing ensure a safe and reliable connection. Use it to connect copper conductors in applications such as electrical panels, motors, and control systems, making it a valuable addition to any electrical toolbox.
Top product features:
- Twist-On design allows for easy and secure wire connection
- Supports up to 6 conductors for multiple wire connections
- Maximum operating temperature of 221 Degrees F for reliable performance in high-temperature applications
Top product applications:
- Automotive Wiring Harness
- Electrical Panel Assembly
- Appliance Wiring and Repair
Twist-On Wire Connectors, Color Red/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene/Thermoplastic Elastomer, Maximum Single Wire Size 6 AWG
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.60
- Package Width: 3.60
- Package Height: 3.20
- Package Weight: 0.48
Product info last updated on January 14, 2026 10:32pm UTC
Category: Electrical Connectors
