Twist-On Wire Connector, 8 AWG Max, Red, Yellow, 1, 000 V, 250 PK MPN:30-347
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G306621456

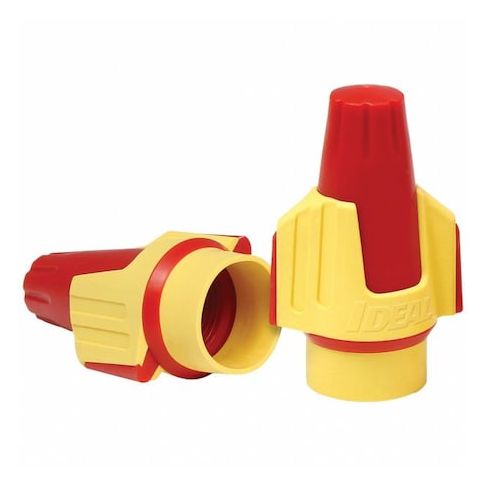

Twist-On Wire Connector, 8 AWG Max, Red, Yellow, 1, 000 V, 250 PK
Twister's Twist-On Wire Connectors are designed for secure and reliable connections in a variety of applications. With a maximum operating temperature of 221°F and a voltage rating of 1,000V, these connectors can handle demanding tasks. They are suitable for use with copper conductors and feature a zinc contact finish for durability. The connectors are CSA certified and UL listed, ensuring compliance with industry standards. They are ideal for use in commercial and industrial settings, including electrical panels, control systems, and equipment installations. With a pack of 250, these connectors provide a convenient and cost-effective solution for electrical professionals.
Top product features:
- Twist-on wire connectors allow for easy and secure connections to wires.
- The connectors have a maximum operating temperature of 221 degrees F, enabling use in a variety of applications.
- The connectors are designed for use with copper conductors and have a maximum voltage rating of 1,000 V.
Top product applications:
- Household wiring projects
- Electrical panel upgrades
- Marine electrical systems
Twist-On Wire Connectors, Color Red/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene/Thermoplastic Elastomer, Maximum Single Wire Size 6 AWG
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: PK
- Package Length: 20.30
- Package Width: 13.90
- Package Height: 10.20
- Package Weight: 21.75
Product info last updated on February 4, 2026 10:04am UTC
Category: Electrical Connectors
