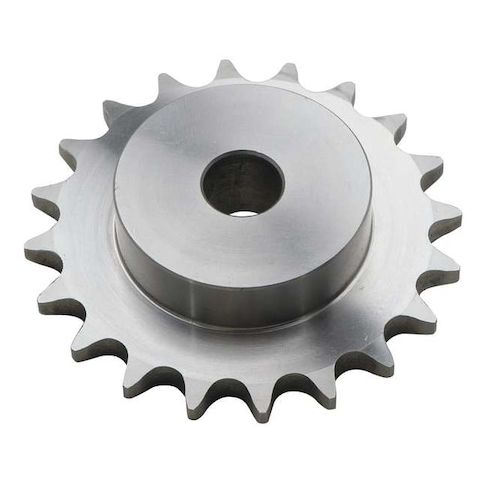

Single Strand Sprocket, Plain, 50 Chain Size, 3/4 Bore Dia., 22 # of Teeth MPN:50B22SS
Single Strand Sprocket, Plain, 50 Chain Size, 3/4 Bore Dia., 22 # of Teeth
This Single Strand Sprocket is designed for use with 50 chain size, featuring a 3/4 inch bore diameter and 22 teeth for efficient power transmission. Made from high-quality stainless steel, this sprocket offers excellent durability and resistance to corrosion. Its one-side hub type design provides easy installation and removal, while the included set screws ensure secure fastening. Ideal for applications in various industries, including automotive, aerospace, and manufacturing, this sprocket is suitable for use in gearboxes, conveyor systems, and other machinery where reliability and performance are critical. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Single strand design for reduced wear and tear
- Stainless steel material for corrosion resistance and durability
- One side hub type for easy mounting and reduced complexity
Top product applications:
- Conveyor belt drive
- Material handling equipment
- Power transmission systems
Single Strand Sprocket, Bore Diameter 3/4 in, For Chain Pitch 5/8 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 2 in, Number of Teeth 22, Outside Diameter 4.72 in, Pitch Diameter 4.392 in, Bore Type Plain, Chain Number 50, For Pitch Type Single Pitch, Hub Diameter 3 in, Hub Projection 0.657 in, Includes Set Screws, Keyway Yes, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 in, Material Grade 304
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.10
- Package Height: 1.30
- Package Weight: 2.64
Product info last updated on February 8, 2026 8:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
