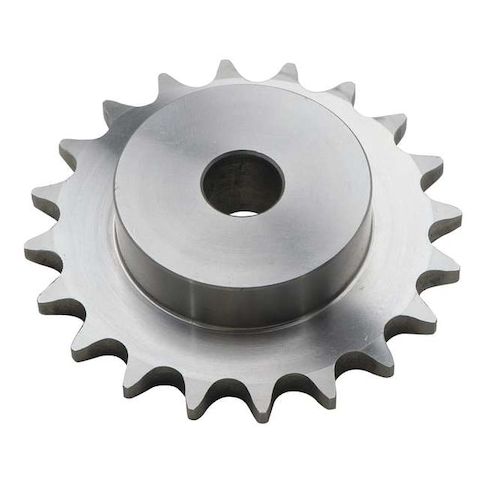

Single Strand Sprocket, Plain, 40 Chain Size, 5/8 Bore Dia., 24 # of Teeth MPN:40B24SS
Single Strand Sprocket, Plain, 40 Chain Size, 5/8 Bore Dia., 24 # of Teeth
This Single Strand Sprocket from Tsubaki is a high-quality, stainless steel component designed for use with chain pitch 1/2 in and chain number 40. Its 24 teeth provide a reliable drive mechanism for various applications. The sprocket's 5/8 in bore diameter and maximum bore diameter of 2 1/4 in ensure compatibility with a range of chain sizes. Its one-side hub type and keyway make it easy to install and maintain. Suitable for use in industries such as manufacturing, material handling, and power transmission, this sprocket offers reliable performance and durability. Its compact size and lightweight design make it ideal for applications where space is limited.
Top product features:
- Single Strand Sprocket has a stainless steel construction for durability and resistance to corrosion.
- The sprocket features a keyway for secure attachment to a drive shaft or other rotating component.
- The sprocket has 24 teeth for efficient power transmission and chain engagement.
Top product applications:
- Conveyor Systems
- Gearboxes
- Material Handling Equipment
Single Strand Sprocket, Bore Diameter 5/8 in, For Chain Pitch 1/2 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 2 1/4 in, Number of Teeth 24, Outside Diameter 4.1 in, Pitch Diameter 3.831 in, Bore Type Plain, Chain Number 40, For Pitch Type Single Pitch, Hub Diameter 3 1/4 in, Hub Projection 0.716 in, Includes Set Screws, Keyway Yes, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 in, Material Grade 304
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.80
- Package Height: 1.20
- Package Weight: 2.27
Product info last updated on February 15, 2026 8:31pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
