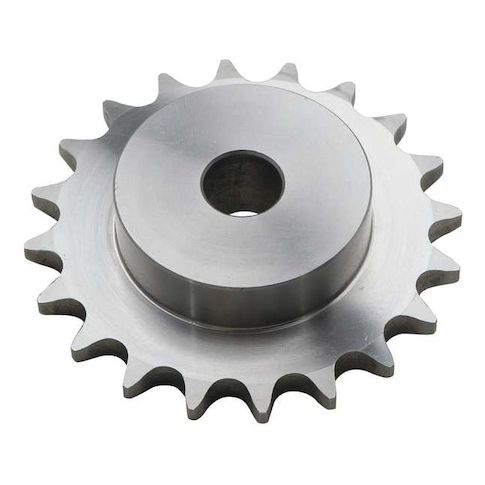

Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 15 # of Teeth MPN:25B15SS
Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 15 # of Teeth
This single strand sprocket from Tsubaki is a high-quality, stainless steel component designed for use in a variety of applications, including conveyor systems, power transmission, and material handling. Its 15 teeth and 1/4 inch bore diameter make it suitable for use with chain pitch 1/4 inch. The sprocket features a one-side hub type and includes set screws for secure installation. Its compact size and lightweight design make it ideal for use in tight spaces and high-speed applications. With a lead time of just 5 days, this sprocket is perfect for industries requiring rapid production and efficient material handling.
Top product features:
- One side hub type provides secure attachment to shafts.
- Stainless steel material ensures resistance to corrosion and wear.
- Includes set screws for easy installation and secure fastening.
Top product applications:
- Conveyor systems for food processing
- Material handling equipment for warehouses
- Automotive assembly lines for engine or transmission production
Single Strand Sprocket, Bore Diameter 1/4 in, For Chain Pitch 1/4 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 9/16 in, Number of Teeth 15, Outside Diameter 1.326 in, Pitch Diameter 1.203 in, Bore Type Plain, Chain Number 25, For Pitch Type Single Pitch, Hub Diameter 7/8 in, Hub Projection 0.39 in, Includes Set Screws, Keyway Yes, Length through Bore 1/2 in, Material Grade 304, Set Screw Location 90 Degrees from Keyway, Set Screw Size -
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.60
- Package Height: 2.40
- Package Weight: 0.12
Product info last updated on February 1, 2026 10:55pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
