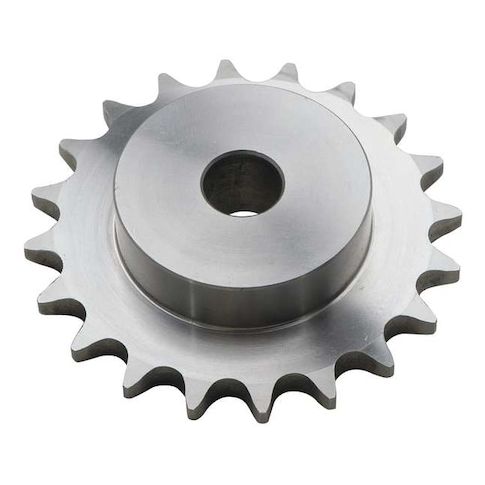

Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 22 # of Teeth MPN:25B22SS
Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 22 # of Teeth
This Single Strand Sprocket from Tsubaki is a high-quality, stainless steel component designed for use with 25 chain pitch applications. Its plain bore diameter of 1/4 inch and 22 teeth make it suitable for a variety of industries, including manufacturing, food processing, and material handling. The sprocket's one-side hub type and keyway design provide a secure and durable connection. With a maximum bore diameter of 15/16 inch and an outside diameter of 1.889 inches, this sprocket is ideal for applications where precision and reliability are crucial. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Single strand design allows for easy installation and removal of the sprocket.
- Stainless steel material provides corrosion resistance and durability.
- Keyway feature allows for secure attachment of set screws.
Top product applications:
- Conveyor systems
- Gearboxes
- Material handling equipment
Single Strand Sprocket, Bore Diameter 1/4 in, For Chain Pitch 1/4 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 15/16 in, Number of Teeth 22, Outside Diameter 1.889 in, Pitch Diameter 1.757 in, Bore Type Plain, Chain Number 25, For Pitch Type Single Pitch, Hub Diameter 1 7/16 in, Hub Projection 0.515 in, Includes Set Screws, Keyway Yes, Length through Bore 5/8 in, Material Grade 304, Set Screw Location 90 Degrees from Keyway
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.70
- Package Height: 2.70
- Package Weight: 0.33
Product info last updated on February 24, 2026 2:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
