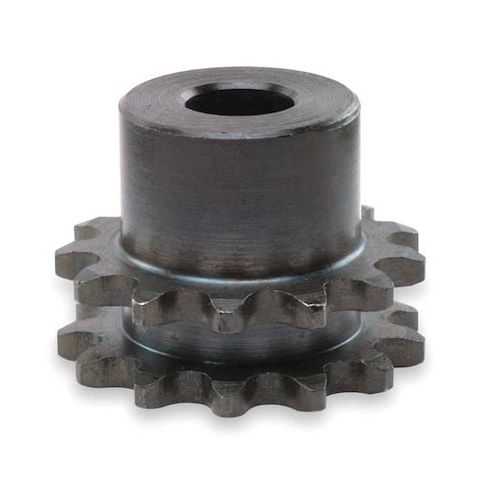

Double Strand Sprocket, Plain, 40-2 Chain Size, 1/2 Bore Dia., 13 # of Teeth MPN:D40B13H
Double Strand Sprocket, Plain, 40-2 Chain Size, 1/2 Bore Dia., 13 # of Teeth
Elevate your power transmission systems with the Tsubaki Double Strand Sprocket, designed for heavy-duty applications. This rugged steel sprocket features a 1/2 bore diameter and 13 teeth, providing a strong and reliable connection for 40-2 chain pitch. The double strand design allows for increased capacity and efficiency, making it ideal for use in industrial settings such as manufacturing, mining, and construction. With a black oxide finish and set screws included, this sprocket is built to withstand the toughest conditions, ensuring smooth operation and prolonged lifespan. Its compact size and lightweight design make it easy to integrate into your existing systems.
Top product features:
- Double Strand construction provides increased strength and durability compared to single strand sprockets.
- The 1/2 bore diameter allows for easy installation and reduced wear on the chain.
- The sprocket features a keyway and set screws for secure mounting and reduced risk of slippage.
Top product applications:
- Conveyor systems
- Industrial machinery
- Power transmission equipment
Double Strand Sprocket, Bore Diameter 1/2 in, For Chain Pitch 1/2 in, For Number of Strands Double, Hub Type One Side, Material Steel, Maximum Bore Diameter 1 in, Number of Teeth 13, Outside Diameter 2.33 in, Pitch Diameter 2.089 in, Bore Type Plain, Chain Number 40-2, Finish Black Oxide, For Pitch Type Single Pitch, Hub Diameter 1 1/2 in, Hub Projection 1.225 in, Includes Set Screws, Keyway Yes, Keyway Depth 1/8 in, Keyway Width 1/4 in, Length through Bore 1 1/2 in, Material Grade 1045
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.50
- Package Height: 1.50
- Package Weight: 0.85
Product info last updated on March 23, 2026 6:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
