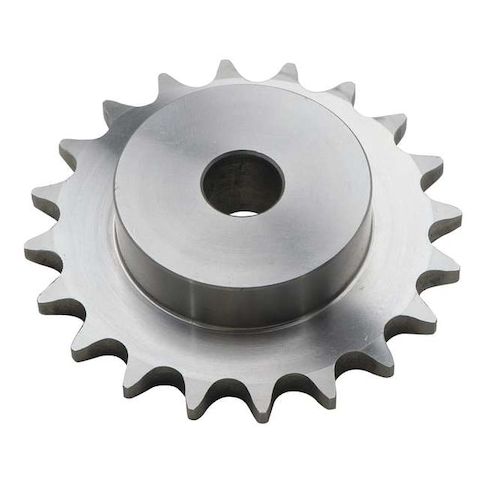

Single Strand Sprocket, Plain, 50 Chain Size, 3/4 Bore Dia., 21 # of Teeth MPN:50B21SS
Single Strand Sprocket, Plain, 50 Chain Size, 3/4 Bore Dia., 21 # of Teeth
This stainless steel single strand sprocket is designed for high-performance applications, featuring a 3/4 inch bore diameter and 21 teeth. Suitable for chain pitch 5/8 inch and single strand chain size 50, it's ideal for use in industries such as food processing, pharmaceuticals, and chemical handling. The sprocket's one-side hub type and plain bore type ensure smooth operation and easy installation. With a maximum bore diameter of 2 inches and a keyway for added stability, this sprocket is perfect for applications requiring high torque and reliability, such as conveyors, gearboxes, and other mechanical systems.
Top product features:
- Single Strand Sprocket construction features a stainless steel material grade 304.
- The sprocket includes set screws for secure attachment.
- The sprocket has a keyway for added durability and secure key or shaft attachment.
Top product applications:
- Conveyor systems for heavy-duty industrial use
- Automotive manufacturing assembly lines
- Power transmission systems in heavy machinery
Single Strand Sprocket, Bore Diameter 3/4 in, For Chain Pitch 5/8 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 2 in, Number of Teeth 21, Outside Diameter 4.52 in, Pitch Diameter 4.194 in, Bore Type Plain, Chain Number 50, For Pitch Type Single Pitch, Hub Diameter 3 in, Hub Projection 0.657 in, Includes Set Screws, Keyway Yes, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 in, Material Grade 304
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 5.20
- Package Height: 1.30
- Package Weight: 2.52
Product info last updated on January 30, 2026 11:00pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
