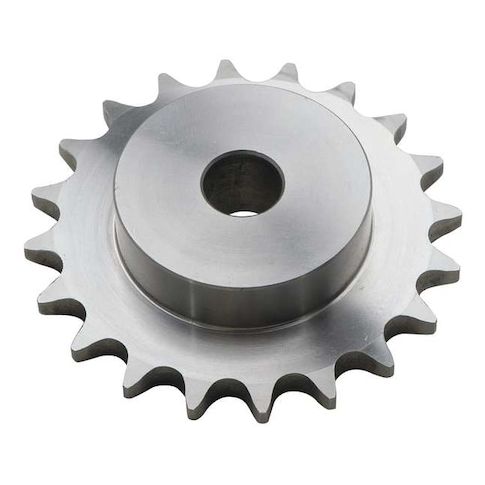

Single Strand Sprocket, Plain, 35 Chain Size, 1/2 Bore Dia., 16 # of Teeth MPN:35B16SS
Single Strand Sprocket, Plain, 35 Chain Size, 1/2 Bore Dia., 16 # of Teeth
This Single Strand Sprocket from Tsubaki is a high-quality, stainless steel component designed for use with chain pitch 3/8 inches. Its 16 teeth and 1/2 inch bore diameter make it ideal for a variety of applications, including conveyor systems, material handling equipment, and power transmission. The sprocket's stainless steel construction ensures durability and resistance to corrosion, while its keyway and set screws provide a secure connection. With a maximum bore diameter of 15/16 inches and a length through bore of 3/4 inch, this sprocket is suitable for use in a range of industries, including manufacturing, logistics, and food processing.
Top product features:
- One side hub type for easy installation and reduced assembly time.
- Keyway for secure key or pin installation, reducing the risk of sprocket slippage.
- Includes set screws for a secure and adjustable fit, ensuring proper sprocket alignment and preventing damage to the chain.
Top product applications:
- Conveyor systems for food and pharmaceutical processing
- Power transmission systems for industrial machinery
- Material handling systems for warehouses and distribution centers
Single Strand Sprocket, Bore Diameter 1/2 in, For Chain Pitch 3/8 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 15/16 in, Number of Teeth 16, Outside Diameter 2.11 in, Pitch Diameter 1.922 in, Bore Type Plain, Chain Number 35, For Pitch Type Single Pitch, Hub Diameter 1 1/2 in, Hub Projection 0.582 in, Includes Set Screws, Keyway Yes, Keyway Depth 1/16 in, Keyway Width 1/8 in, Length through Bore 3/4 in, Material Grade 304
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.10
- Package Height: 2.60
- Package Weight: 0.39
Product info last updated on January 20, 2026 1:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
