Connecting Roller Link, Double Pitch MPN:C2060HSA1CL

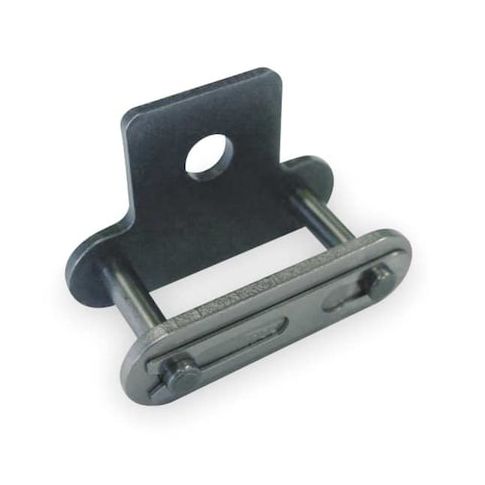

Connecting Roller Link, Double Pitch
The Tsubaki Connecting Roller Link, Double Pitch, is a versatile attachment link designed for heavy-duty applications. Its steel construction and plain finish ensure durability and resistance to wear. With a roller diameter of 15/32 in and a pitch of 1 1/2 in, this link is ideal for use in industries such as manufacturing, construction, and material handling. Its attachment type tab and riveted pin construction provide secure attachment and easy installation. The link's operating temperature range of 15°F to 300°F makes it suitable for use in a variety of environments, from cold storage to high-temperature applications.
Top product features:
- The product has a double pitch design, allowing for efficient power transmission and reduced wear on the chain.
- The product features a riveted pin construction, providing added strength and durability to the attachment link.
- The product is designed for use with lubricants ranging from SAE 10 to SAE 50, enabling the user to select the optimal lubrication for their application and operating conditions.
Top product applications:
- Assembly Line
- Conveyor Systems
- Material Handling Equipment
Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.30
- Package Weight: 0.15
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 23, 2026 2:36pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
