Single Strand Sprocket, Plain, 40 Chain Size, 5/8 Bore Dia., 30 # of Teeth MPN:40B30SS
Single Strand Sprocket, Plain, 40 Chain Size, 5/8 Bore Dia., 30 # of Teeth

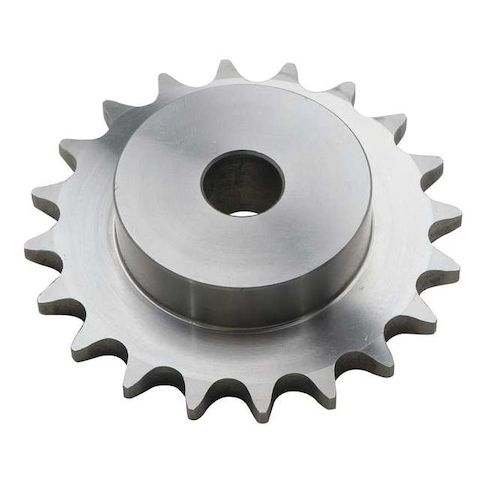

This Tsubaki single strand sprocket is designed for use with chain pitch 1/2 in and features a 30 tooth count. Constructed from stainless steel, it provides durability and resistance to corrosion. The sprocket has a 5/8 in bore diameter and a maximum bore diameter of 2 1/4 in. Its one-side hub type design and keyway make it suitable for various applications, including material handling, conveyance, and power transmission systems. With a lead time of 5 days and a minimum order quantity of 1, this product is ideal for industries requiring reliable and efficient sprocket solutions.
Top product features:
- Stainless Steel construction for durability and corrosion resistance
- Keyway for secure attachment of a shaft or other rotating component
- Set screws included for easy installation and secure fastening
Top product applications:
- Power transmission in industrial equipment
- Conveyor systems for manufacturing and logistics
- Material handling systems for warehouses and distribution centers
Single Strand Sprocket, Bore Diameter 5/8 in, For Chain Pitch 1/2 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 2 1/4 in, Number of Teeth 30, Outside Diameter 5.06 in, Pitch Diameter 4.783 in, Bore Type Plain, Chain Number 40, For Pitch Type Single Pitch, Hub Diameter 3 1/4 in, Hub Projection 0.716 in, Includes Set Screws, Keyway Yes, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 in, Material Grade 304
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.20
- Package Weight: 2.81
Product info last updated on February 15, 2026 10:58am UTC
Category: Bearings, V-belts and Power Transmission Equipment
