Sprocket, Plain, 80 Chain Size, 1 Bore Dia., 22 # of Teeth MPN:80B22
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0476567

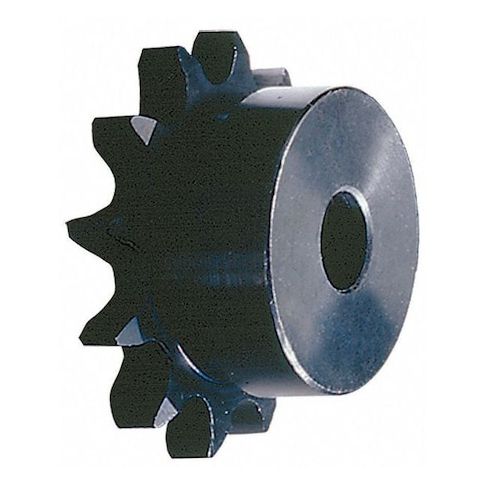

Sprocket, Plain, 80 Chain Size, 1 Bore Dia., 22 # of Teeth
This Tsubaki 80 chain sprocket is a high-quality, steel-made component designed for heavy-duty applications. With a 22-tooth count and 1-inch bore diameter, it provides a reliable and efficient power transmission solution. The sprocket's one-side hub design and black oxide finish enhance its durability and corrosion resistance. Its keyway and set screws ensure secure mounting, making it ideal for use in industrial machinery, conveyor systems, and material handling equipment. With a lead time of just one day, this sprocket is perfect for businesses that require rapid replacement or upgrade of their power transmission components.
Top product features:
- One side hub type for easy installation and alignment
- Keyway for secure key or pin attachment
- Black oxide finish for corrosion resistance
Top product applications:
- Power transmission in industrial machinery
- Conveyor systems for material handling
- Automotive applications in gearboxes and transmissions
Sprocket, Bore Diameter 1 in, For Chain Pitch 1 in, For Number of Strands Single, Hub Type One Side, Material Steel, Maximum Bore Diameter 2 3/4 in, Number of Teeth 22, Outside Diameter 7.56 in, Pitch Diameter 7.027 in, Bore Type Plain, Chain Number 80, Finish Black Oxide, For Pitch Type Single Pitch, Hub Diameter 4 1/4 in, Hub Projection 1.175 in, Includes Set Screws, Keyway Yes, Keyway Depth 1/8 in, Keyway Width 1/4 in, Length through Bore 1 7/8 in, Material Grade 1045
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.90
- Package Width: 8.70
- Package Height: 2.30
- Package Weight: 11.49
Product info last updated on February 3, 2026 5:48am UTC
Category: Bearings, V-belts and Power Transmission Equipment
