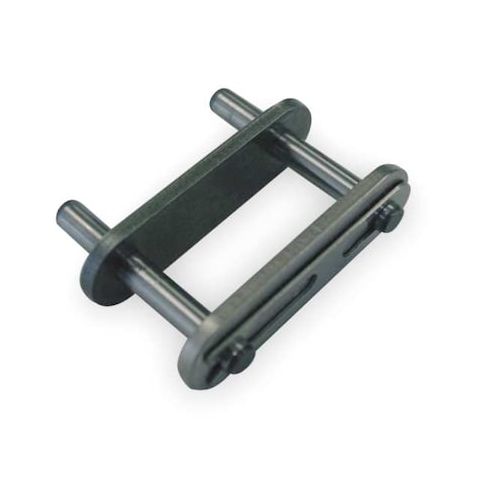

Connecting Roller Link, D-3 Attachment MPN:C2060HD3CL
Connecting Roller Link, D-3 Attachment
The Tsubaki Connecting Roller Link, D-3 Attachment, is a high-quality steel attachment link designed for heavy-duty applications. Its 1 1/2 inch pitch and 15/32 inch roller diameter make it suitable for use in conveyor systems, material handling equipment, and other industrial machinery. The attachment link's plain finish and riveted pin construction ensure reliable performance in temperatures ranging from 15 to 300 degrees Fahrenheit. With a lead time of just one day and a minimum order quantity of one, this product is ideal for businesses with varying needs. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Attachment Link type with a pin construction that provides a secure connection
- Roller diameter of 15/32 in provides a smooth chain operation
- Lubrication suitable for use with SAE 10 to SAE 50 oils allows for optimal chain performance
Top product applications:
- Power transmission in heavy machinery
- Conveyor systems in manufacturing plants
- Material handling equipment in warehouses
Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 0.70
- Package Weight: 0.13
Product info last updated on February 1, 2026 4:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
