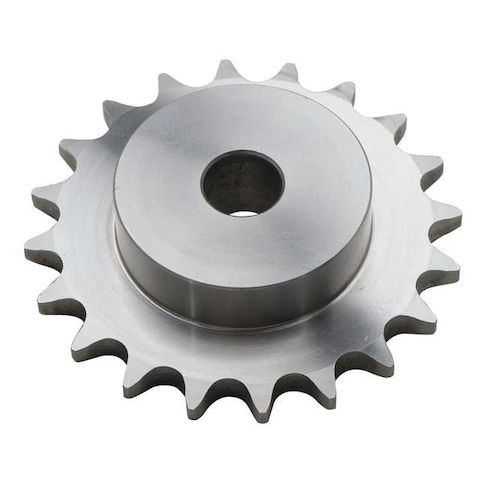

Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 17 # of Teeth MPN:25B17SS
Single Strand Sprocket, Plain, 25 Chain Size, 1/4 Bore Dia., 17 # of Teeth
This Single Strand Sprocket is a high-quality component designed for various industrial applications, including conveyors, material handling systems, and power transmission equipment. Made from durable stainless steel, it features a 17-tooth design and a 1/4 inch bore diameter, making it suitable for chain pitch 1/4 inch applications. The sprocket's one-side hub type and plain bore design ensure smooth operation and easy installation. With a maximum bore diameter of 5/8 inch and a keyway for added security, this sprocket is perfect for use in demanding environments. Its compact size and lightweight design make it ideal for a range of applications.
Top product features:
- Made from stainless steel for durability and resistance to corrosion
- Has a keyway for secure attachment of a key or other hardware
- Includes set screws for adjustable installation and secure attachment to a shaft
Top product applications:
- Conveyor systems
- Automotive manufacturing
- Material handling equipment
Single Strand Sprocket, Bore Diameter 1/4 in, For Chain Pitch 1/4 in, For Number of Strands Single, Hub Type One Side, Material Stainless Steel, Maximum Bore Diameter 5/8 in, Number of Teeth 17, Outside Diameter 1.487 in, Pitch Diameter 1.361 in, Bore Type Plain, Chain Number 25, For Pitch Type Single Pitch, Hub Diameter 1 in, Hub Projection 0.39 in, Includes Set Screws, Keyway Yes, Length through Bore 1/2 in, Material Grade 304, Set Screw Location 90 Degrees from Keyway, Set Screw Size -
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.60
- Package Height: 2.70
- Package Weight: 0.16
Product info last updated on February 2, 2026 11:42am UTC
Category: Bearings, V-belts and Power Transmission Equipment
