Angular Contact Ball Bearing, 3200lb., NBR MPN:5205 2RS/C3 PRX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9639707

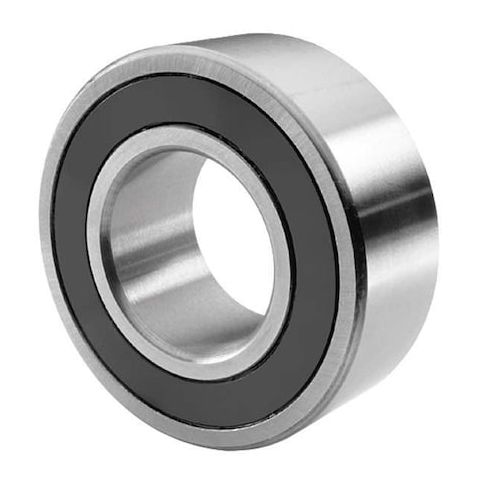

Angular Contact Ball Bearing, 3200lb., NBR
The Tritan Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. With a maximum speed of 9,800 RPM and a temperature range of -40 to 175 degrees C, it's ideal for use in high-speed machinery, aerospace, and automotive industries. The bearing's alloy steel construction and polyamide cage provide exceptional durability and resistance to wear and corrosion. Its double sealed design ensures long-lasting lubrication and protection from contaminants. Suitable for use in applications such as gearboxes, motors, and pumps, this bearing offers reliable performance and extended lifespan, making it a valuable addition to any industrial or manufacturing operation.
Top product features:
- Double sealed design provides protection against dust and contaminants
- Polyamide cage material ensures high durability and resistance to wear
- Maximum operating temperature of 175 Degrees C allows for high-temperature applications
Top product applications:
- Industrial machinery
- Robotics and automation systems
- Aerospace and defense equipment
Angular Contact Ball Bearing, Ball Material Alloy Steel, Bearing Industry Number 3205/5205, Bore Diameter 25 mm, Cage Material Polyamide, Closure Double Sealed, Contact Bearing Type Angular Contact, Lubricant Material SRI 2 Grease, Polyrex EM Grease, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 9,800 RPM, Maximum Temperature 175 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows Two, Outside Diameter 52 mm, Overall Width 20.6 mm, Ring Material Alloy Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.00
- Package Weight: 0.43
Product info last updated on February 3, 2026 12:50pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
