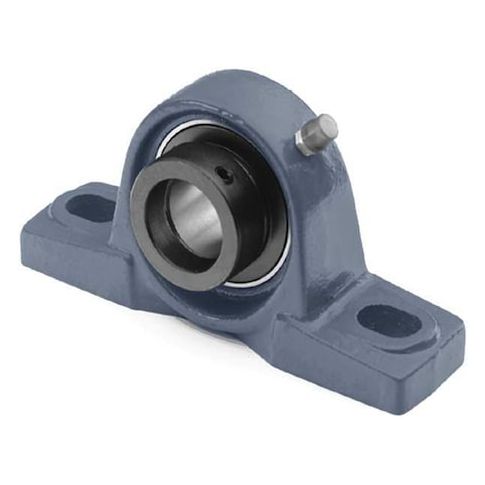

Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 3/4 in Dia, Alloy Steel Insert Material MPN:HCPK204-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9564222
Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 3/4 in Dia, Alloy Steel Insert Material
This Tritan Pillow Block Bearing is designed for heavy-duty applications, featuring a robust cast iron housing and alloy steel bearing insert. With a radial ball bearing design and double sealed closure, it provides long-lasting performance and protection from dust and contaminants. The bearing is suitable for use in a wide range of industries, including manufacturing, construction, and mining, where high temperatures and heavy loads are common. Its compact size and bolt-through mount make it easy to integrate into existing systems, offering a reliable and efficient solution for demanding applications.
Top product features:
- Double sealed closure for protection against dust and moisture
- Fixed expansion type for secure and stable mounting
- Cast iron housing for durability and resistance to wear and tear
Top product applications:
- Gearbox and motor mounting
- Pump mounting
- Conveyor belt drives
Pillow Block Bearing, Base Height 14 mm, Base Width 38 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Center Height 31.7 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material Grease, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Mount Hole Center-to-Center Length 98 mm, Mount Hole Center-to-Center Width 95 mm, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.90
- Package Height: 6.10
- Package Weight: 1.60
Product info last updated on February 18, 2026 12:32am UTC
Category: Bearings, V-belts and Power Transmission Equipment
