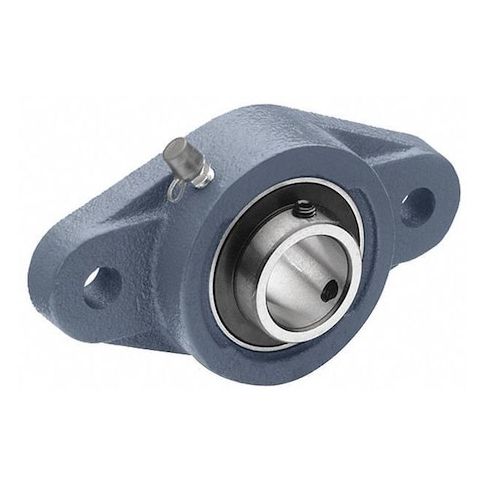

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:SBFL204-12G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9564107
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
Upgrade your machinery with the Tritan 2-Bolt Flange Bearing, designed for high-performance and durability. This ball bearing features a 3/4in cylindrical bore and is made with alloy steel for strength and resistance to wear. The double-sealed closure ensures long-lasting lubrication and protection from debris. With a temperature range of -40°F to 250°F, it's suitable for a variety of applications, including industrial equipment, agricultural machinery, and heavy machinery. Its compact rhombus housing and fixed expansion type make it easy to integrate into existing systems, providing smooth operation and minimizing downtime. Perfect for demanding industries and harsh environments.
Top product features:
- 2-Bolt design for secure mounting
- Radial Ball bearing for smooth rotation and low friction
- Double Sealed closure for protection against dust and moisture
Top product applications:
- Pump shaft
- Gearbox shaft
- Motor shaft
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing SB204-12G, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 1 5/16 in, Overall Length 4 7/16 in, Overall Width 2 3/8 in, Rolling Element Rows 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.30
- Package Height: 4.80
- Package Weight: 0.84
Product info last updated on February 7, 2026 10:43am UTC
Category: Bearings, V-belts and Power Transmission Equipment
