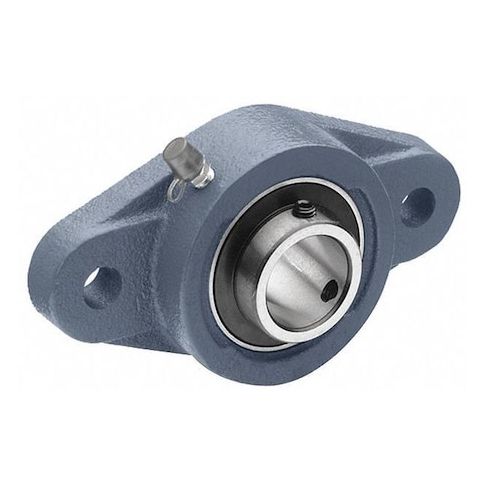

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:SBFL205-16G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9564091
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
This 2-bolt flange bearing is a high-performance radial ball bearing designed for heavy-duty applications. Its alloy steel bearing insert and cast iron housing provide excellent durability and resistance to wear and tear. The bearing is double sealed for maximum protection against contamination and offers a wide operating temperature range of -40 to 250°F. Ideal for use in machinery, equipment, and heavy industrial applications, this bearing ensures smooth and consistent operation, reducing downtime and extending the lifespan of machinery. Its compact design and fixed expansion type make it suitable for a variety of applications, including conveyor systems and gearboxes.
Top product features:
- Two-bolt flange design for easy mounting and secure attachment
- Radial ball bearing type provides smooth and quiet operation
- Double sealed closure for dust and moisture protection
Top product applications:
- Pump shaft support
- Conveyor belt drive
- Machine tool spindle support
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing SB205-16G, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 1 13/32 in, Overall Length 5 1/8 in, Overall Width 2 11/16 in, Rolling Element Rows 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.90
- Package Height: 1.70
- Package Weight: 1.35
Product info last updated on February 17, 2026 8:00am UTC
Category: Bearings, V-belts and Power Transmission Equipment
