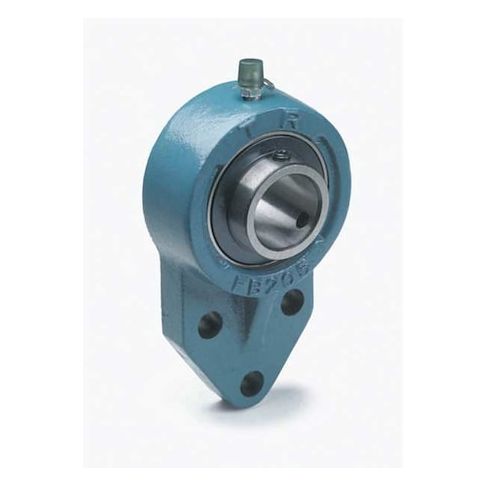

3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:UCFB204-12A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9563994
3 Holes, Flange Bracket Housing, 3 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
The Tritan 3-Bolt Flange Bearing is a reliable and versatile solution for a wide range of applications. With its alloy steel bearing insert and cast iron housing, this bearing provides exceptional durability and resistance to extreme temperatures. Its double-sealed design ensures long-lasting performance and protects against contamination. Suitable for use in heavy-duty machinery, equipment, and industrial settings, this bearing is perfect for applications such as conveyor systems, gearboxes, and pumps. Its compact size and fixed expansion type make it easy to integrate into existing systems, while its NLGI #2 equivalent lubricant ensures smooth operation and reduced maintenance.
Top product features:
- 3-Bolt flange bearing design
- Radial ball bearing insert provides smooth rotation and reduced friction
- Double sealed closure protects against contamination and wear
Top product applications:
- Pumps
- Conveyors
- Fans
3 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Flange Bracket, Included Bearing UC204-12, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 7/8 in, Number of Mount Holes 3, Overall Height 1 11/32 in, Overall Length 4 1/4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.60
- Package Height: 1.60
- Package Weight: 1.25
Product info last updated on March 22, 2026 1:41am UTC
Category: Bearings, V-belts and Power Transmission Equipment
