Flange Bearing, 2-Bolt, Ball, 1-3/4" Bore MPN:UCFL209-28
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9447252

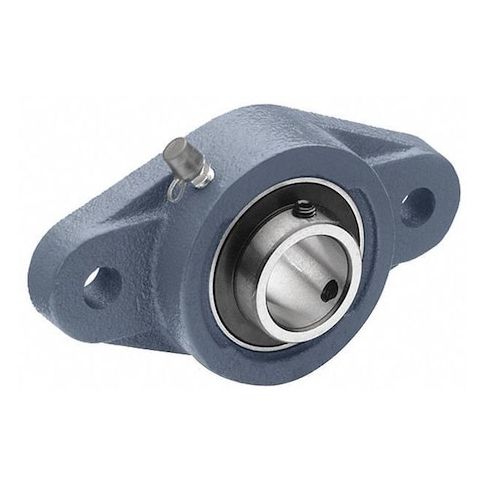

Flange Bearing, 2-Bolt, Ball, 1-3/4" Bore
The Tritan 2-Bolt Flange Bearing is a reliable and versatile component for various industrial applications. This robust bearing features a 1-3/4in cylindrical bore and a radially loaded ball bearing insert made of alloy steel, providing smooth operation and long-lasting performance. Its double-sealed design ensures protection against harsh environments and extreme temperatures (-40°F to 250°F). Suitable for use in machinery, equipment, and conveyor systems, this bearing offers a fixed expansion type and is available with a rhombus-shaped housing made of cast iron. Its compact size and easy installation make it an ideal choice for a wide range of industries and applications.
Top product features:
- Double sealed closure to protect the bearing from contaminants
- Fixed expansion type to prevent movement or shifting
- Radial ball bearing design for smooth rotational movement
Top product applications:
- Pump shaft support
- Motor mount bearing
- Gearbox bearing support
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC209-28, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 1/16 in, Overall Length 7 13/32 in, Overall Width 4 1/4 in, Rolling Element Rows 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 4.60
- Package Height: 2.50
- Package Weight: 3.82
Product info last updated on February 11, 2026 8:05am UTC
Category: Bearings, V-belts and Power Transmission Equipment
