2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Cast Iron, Set Screw Locking MPN:UCFL207-20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9447155

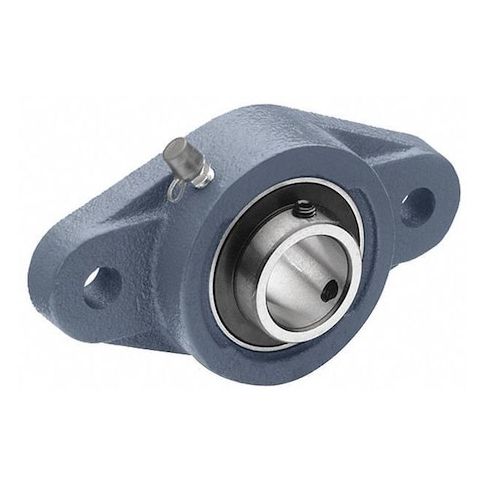

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Cast Iron, Set Screw Locking
This 2-bolt flange bearing is designed for heavy-duty applications requiring high load capacity and durability. Its alloy steel bearing insert and cast iron housing provide excellent strength and resistance to wear and corrosion. The double-sealed design keeps lubricant in and contaminants out, ensuring smooth operation in a wide temperature range (-40°F to 250°F). Suitable for use in industrial equipment, machinery, and heavy machinery components, this bearing offers reliable performance and long service life. Its compact size and fixed expansion type make it ideal for applications where space is limited, such as in conveyor systems and industrial machinery.
Top product features:
- 2-Bolt flange design allows for secure mounting and easy installation
- Double sealed closure protects the bearing from dust and moisture
- Radial ball bearing provides smooth and quiet rotation in a wide temperature range
Top product applications:
- Industrial machinery
- Pumps and compressors
- Conveyor systems
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC207-20, Lubricant Material NLGI #2 Equivalent, Maximum Speed 4,300 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height Not Applicable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 3.80
- Package Height: 2.00
- Package Weight: 2.59
Product info last updated on March 11, 2026 9:21pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
