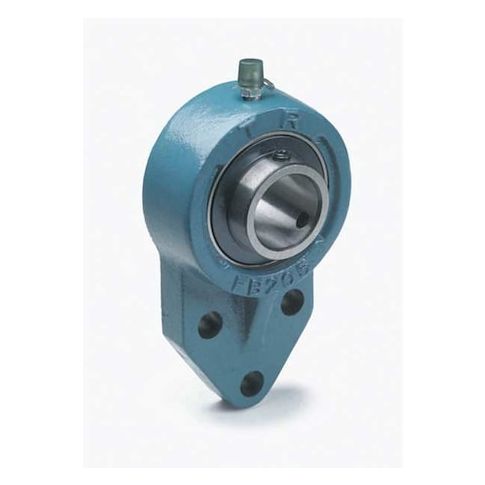

3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking MPN:UCFB205-16A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9447103
3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking
The Tritan 3-Bolt Flange Bearing is a reliable and versatile component designed for a wide range of industrial applications. Its cylindrical bore and radial ball bearing insert provide smooth and efficient operation, while the alloy steel bearing insert ensures durability and resistance to wear. Suitable for use in temperatures ranging from -40 to 250°F, this bearing is ideal for applications in heavy machinery, automotive, and aerospace industries. Its compact design and fixed expansion type make it easy to integrate into existing systems, providing a reliable and long-lasting solution for demanding applications.
Top product features:
- Three-Bolt Flange Bracket Housing
- Radial Ball Bearing Insert Material is Alloy Steel
- Double-Sealed Closure
Top product applications:
- Industrial machinery
- Pumps and compressors
- Conveyor systems
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 46 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Triangular, Included Bearing UC205-16A, Lubricant Material NLGI #2 Equivalent, Maximum Speed 5,000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 1 1/8 in, Number of Mount Holes 3
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 1.70
- Package Weight: 1.52
Product info last updated on February 4, 2026 3:47am UTC
Category: Bearings, V-belts and Power Transmission Equipment
