BushedRlrChnSprkt, SplitTaper, 2517, 1in MPN:80BTL25H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7870765

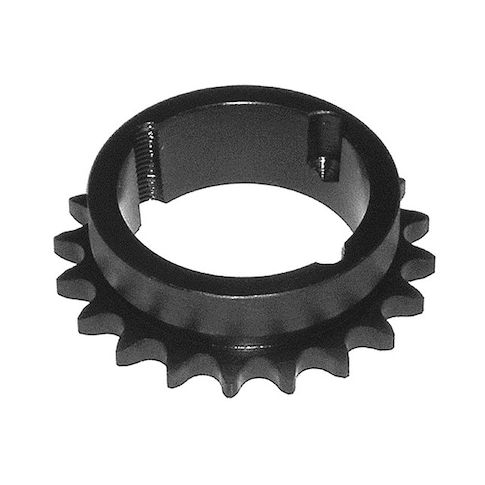

BushedRlrChnSprkt, SplitTaper, 2517, 1in
This Bushed Roller Chain Sprocket is designed for use with bushing size 2517 and split taper bushings, making it ideal for applications requiring high torque transmission. The sprocket's hardened teeth and black oxide finish ensure durability and resistance to wear. With a chain pitch of 1 inch and 25 teeth, it's suitable for single-strand chains. Its compact design allows for easy installation in tight spaces, while the steel material provides strength and stability. Suitable for use in industrial settings, this sprocket is also compliant with ANSI B29.1 and BIS standards, making it a reliable choice for a variety of applications.
Top product features:
- Split Taper Bushing Type
- Hardened Teeth
- One Side Hub Type
Top product applications:
- BushedRlrChnSprkt, SplitTaper, 2517, 1in from Tritan is used in conveyor systems to transfer materials.
- It can be used in power transmission applications where a high torque capacity is required.
- BushedRlrChnSprkt, SplitTaper, 2517, 1in from Tritan is used in industrial machinery to transmit power between components.
Bushed Roller Chain Sprocket, For Bushing Size 2517, For Bushing Type Split Taper, For Chain Pitch 1 in, Material Steel, Number of Teeth 25, Outside Diameter 8.516 in, Pitch Diameter 7.979 in, Chain Number 80, For Number of Strands Single, Maximum Bore Diameter 2 1/2 in, Finish Black Oxide, Hub Diameter 4 1/4 in, Hub Projection 1.175 in, Hub Type One Side, Length through Bore 1 3/4 in, Standards ANSI B29.1, BIS, Teeth Heat Treatment Hardened Teeth, Tooth Width 0.575 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.66
- Package Width: 8.66
- Package Height: 1.97
- Package Weight: 8.10
