Angular Contact Ball Bearing, 2260lb., NBR MPN:5302 2RS/C3 PRX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2098306

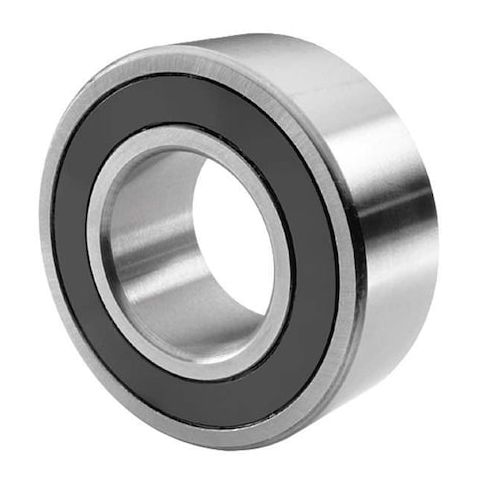

Angular Contact Ball Bearing, 2260lb., NBR
This Angular Contact Ball Bearing is designed for high-speed applications, with a maximum speed of 13,000 RPM and a temperature range of -40 to 175 degrees C. The bearing features a robust alloy steel construction, a polyamide cage, and a double-sealed design for optimal protection against dust and moisture. Suitable for use in industrial and commercial settings, this bearing is ideal for applications such as gearboxes, pumps, and motors. Its high load capacity of 2260lb. and smooth operation make it a reliable choice for demanding environments.
Top product features:
- Double sealed for protection against dust and moisture
- Alloy steel ball material for high load capacity and durability
- Polyamide cage material for smooth and quiet operation
Top product applications:
- High-speed machinery such as gearboxes, pumps, and motors
- Automotive applications including transmissions and differentials
- Industrial equipment including conveyor systems and robotics
Angular Contact Ball Bearing, Ball Material Alloy Steel, Bearing Industry Number 3302/5302, Bore Diameter 15 mm, Cage Material Polyamide, Closure Double Sealed, Contact Bearing Type Angular Contact, Lubricant Material SRI 2 Grease, Polyrex EM Grease, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 13,000 RPM, Maximum Temperature 175 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows Two, Outside Diameter 42 mm, Overall Width 19 mm, Ring Material Alloy Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 0.90
- Package Weight: 0.29
