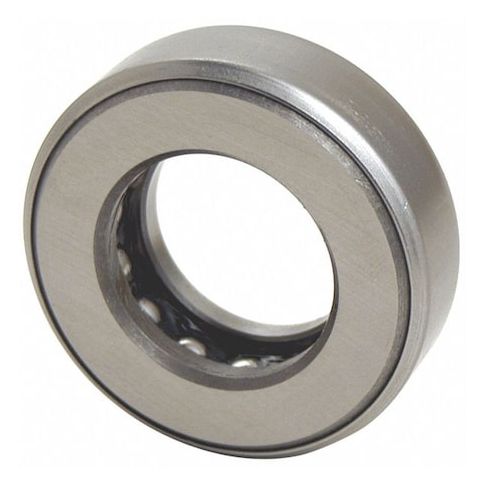

Ball Thrust, Banded, 0.5625in. Bore MPN:D2
Ball Thrust, Banded, 0.5625in. Bore
This high-performance Ball Thrust Bearing features a 0.5625in. bore and is constructed from durable Tritan materials. With a maximum speed of 4,200 RPM when lubricated with grease and 6,500 RPM when lubricated with oil, it's ideal for applications where high rotational speeds are required. The banded design provides excellent load-carrying capacity and stability, making it suitable for use in industrial machinery, automotive systems, and other heavy-duty applications. Its compact size and lightweight design also make it a great option for use in robotics, medical devices, and other precision equipment where space is limited.
Top product features:
- Ball Thrust Bearing supports high-speed applications with a maximum speed of 4,200 RPM when lubricated with grease and 6,500 RPM when lubricated with oil.
- The bearing features a banded ball design for increased load-carrying capacity.
- The bearing is housed in a steel cage that maintains ball separation and promotes smooth operation.
Top product applications:
- Gearbox
- Slew Drive
- Robot Arm
Ball Thrust Bearing, Ball Material Steel, Bearing Industry Number D2, Bore Diameter 9/16 in, Cage Material Steel, Closure Open, Housing Washer Bore 0.594 in, Lubricant Material Grease, Oil, Maximum Speed 4,200 RPM Grease, 6,500 RPM Oil, Outside Diameter 1 7/32 in, Overall Width 0.563 in, Seal Material Not Applicable, Seal Type Not Applicable, System of Measurement Inch, Thrust Bearing Type Banded Ball Thrust Bearing, Washer Material Steel, Ball Material Grade AISI 52100
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 0.70
- Package Weight: 0.10
Product info last updated on January 30, 2026 10:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
