Spherical Plain, 50mm Bore, 90mmOD, Sealed MPN:GEH 50ES 2RS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2080891

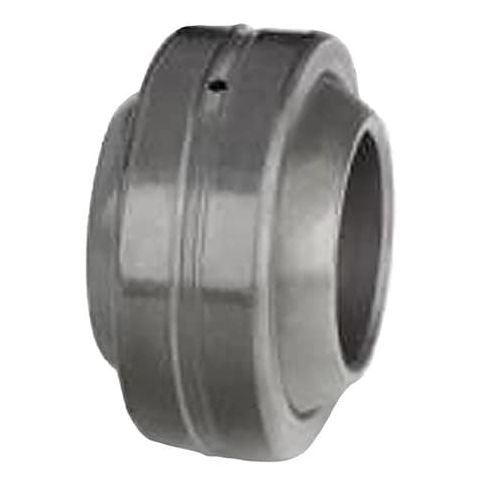

Spherical Plain, 50mm Bore, 90mmOD, Sealed
The Tritan Spherical Plain Bearing is a high-performance bearing designed for demanding applications. With a 50mm bore and 90mm outer diameter, it offers a robust and reliable solution for machinery and equipment. Its alloy steel construction and self-lubricating design ensure smooth operation and extended lifespan. Suitable for use in a wide range of industries, including aerospace, automotive, and manufacturing, this bearing is ideal for applications requiring high radial loads and precision movement. Its compact size and durable design make it an excellent choice for applications where space is limited and reliability is paramount.
Top product features:
- Sealed design to prevent contamination and wear
- Ball diameter of 80 mm to support heavy loads and reduce stress on the bearing
- Lubrication groove and oil hole for easy and efficient lubrication
Top product applications:
- Robotics and Automation
- Heavy Industrial Equipment
- Aerospace Engineering
Spherical Plain Bearing, Liner Material No Liner, Bore Diameter 50 mm, Ball Diameter 80 mm, Outer Ring Width 36 mm, Outside Diameter 90 mm, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Closure Double Sealed, Dynamic Radial Load Capacity 245 kN, Flat Diameter 50 mm, Inner Ring Width 56 mm, Lubricant Material MoS2, Lubrication Openings Lubrication Groove, Oil Hole, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Self Lubricating Bearing No, Standards ISO 9001
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.54
- Package Width: 3.54
- Package Height: 2.21
- Package Weight: 2.56
