Spherical Plain, 8mm Bore, 19mm OD MPN:GEH 8E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2080535

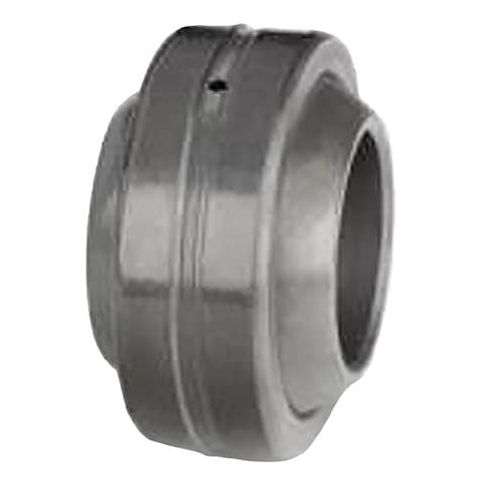

Spherical Plain, 8mm Bore, 19mm OD
This 8mm spherical plain bearing from Tritan features a robust alloy steel construction with a 16mm ball diameter, providing exceptional durability and load-carrying capacity. With a dynamic radial load capacity of 8.1kN and a static radial load capacity of 40kN, it's ideal for applications requiring high precision and stability. Suitable for use in a wide range of industries, including automotive, aerospace, and industrial machinery, this bearing offers reliable performance in temperatures ranging from -50°F to 300°F. Its compact size and self-lubricating design make it an excellent choice for applications where space and maintenance are limited.
Top product features:
- Spherical design allows for smooth rotation and reduced friction in applications where space is limited.
- Ball diameter of 16 mm provides a high level of precision and accuracy in applications requiring high load capacity.
- Self-lubricating capability is not present, requiring external lubrication to maintain optimal performance.
Top product applications:
- Robotics
- Medical Equipment
- Aerospace Components
Spherical Plain Bearing, Liner Material No Liner, Bore Diameter 8 mm, Ball Diameter 16 mm, Outer Ring Width 6 mm, Outside Diameter 19 mm, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Closure Open, Dynamic Radial Load Capacity 8.1 kN, Flat Diameter 8 mm, Inner Ring Width 11 mm, Lubricant Material MoS2, Maximum Temperature 300 Degrees F, Minimum Temperature -50 Degrees F, Self Lubricating Bearing No, Standards ISO 9001, Static Radial Load Capacity 40 kN, System of Measurement Metric
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.75
- Package Height: 0.43
- Package Weight: 0.03
Product info last updated on March 7, 2026 11:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
