Spherical Plain, 90mmBore, 150mmOD, Sealed MPN:GEH 90ES 2RS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2080456

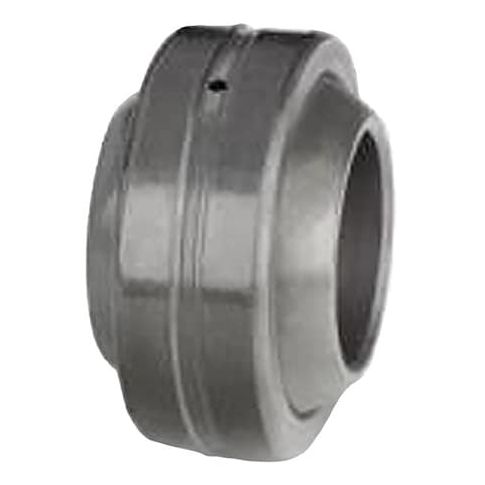

Spherical Plain, 90mmBore, 150mmOD, Sealed
This high-performance spherical plain bearing features a 90mm bore and 150mm outer diameter, making it ideal for heavy-duty applications in industries such as manufacturing, aerospace, and construction. With a dynamic radial load capacity of 607kN, it can withstand extreme loads and stresses, ensuring reliable and long-lasting performance. The bearing's alloy steel construction and double sealed design provide excellent durability and protection against contamination. Suitable for use in temperatures ranging from -20°F to 250°F, this bearing is a versatile solution for a wide range of applications, including machinery, equipment, and heavy machinery.
Top product features:
- Sealed to prevent contamination and maintain lubrication
- Lubricated with MoS2 for reduced friction and wear
- Capable of withstanding dynamic radial loads of up to 607 kN
Top product applications:
- Heavy Machinery
- Aerospace Industry
- Robotics and Automation
Spherical Plain Bearing, Liner Material No Liner, Bore Diameter 90 mm, Ball Diameter 130 mm, Outer Ring Width 55 mm, Outside Diameter 150 mm, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Closure Double Sealed, Dynamic Radial Load Capacity 607 kN, Flat Diameter 90 mm, Inner Ring Width 85 mm, Lubricant Material MoS2, Lubrication Openings Lubrication Groove, Oil Hole, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Self Lubricating Bearing No, Standards ISO 9001
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.91
- Package Width: 5.91
- Package Height: 3.35
- Package Weight: 11.73
Product info last updated on February 23, 2026 11:13pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
