Needle Brg, Drawn Cup, Bore 1.000 In MPN:JTT1616
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1956860

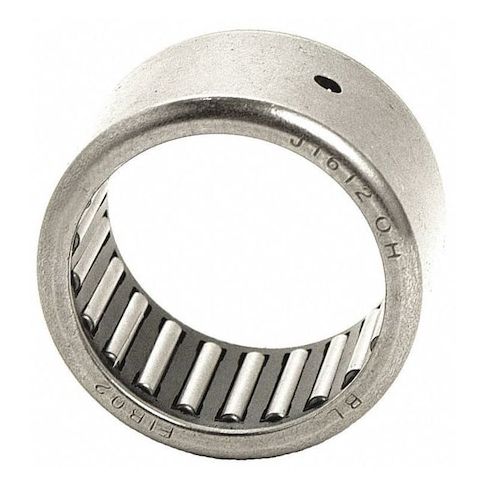

Needle Brg, Drawn Cup, Bore 1.000 In
This high-performance drawn cup needle roller bearing is designed for demanding applications where precision and reliability are critical. With a bore diameter of 1 inch and a maximum speed of 12,000 RPM, it's ideal for high-speed machinery, such as gearboxes, pumps, and motors. The double-sealed design and full complement of rollers ensure smooth operation and extended lifespan. Suitable for use in a variety of industries, including aerospace, automotive, and manufacturing, this bearing can withstand temperatures from -5 to 250 degrees Fahrenheit, making it a versatile and reliable choice for a wide range of applications.
Top product features:
- Drawn Cup design allows for easy installation and removal of the bearing
- Double sealed closure protects against contamination and wear
- Alloy steel ring and roller materials provide high strength and durability
Top product applications:
- High-speed machinery
- Precision medical devices
- Automotive power transmission systems
Needle Roller Bearing, Bearing Industry Number 1616, Bearing Design JTT, Bore Diameter 1 in, Cage Material Steel, Closure Double Sealed, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 12,000 RPM Oil, 7,600 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -5 Degrees F, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 1 1/4 in, Overall Width 1 in, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.40
- Package Height: 1.70
- Package Weight: 0.12
Product info last updated on February 2, 2026 7:02pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
