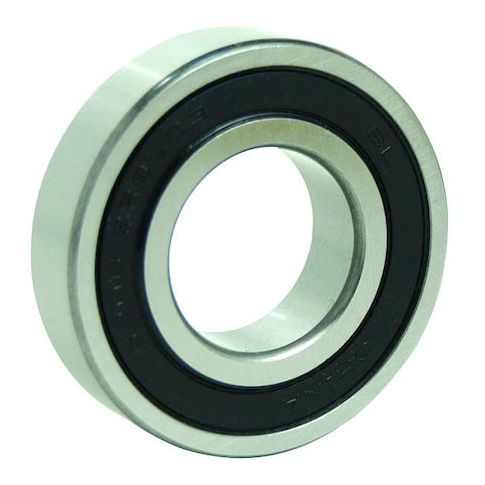

Double Sealed Radial Ball Bearing, R24, 1 1/2 in Bore Dia, 2 5/8 in OD, 0.5625 in W, 350 Degrees F Max Op Temp MPN:R24 2RS PRX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0469701
Double Sealed Radial Ball Bearing, R24, 1 1/2 in Bore Dia, 2 5/8 in OD, 0.5625 in W, 350 Degrees F Max Op Temp
This high-performance Min Ball Bearing from Tritan is designed for demanding applications in oily or greasy environments. With a radial load capacity of 3,780 lbf, it can handle heavy-duty operations. The double-sealed, contact seal design provides maximum protection from contaminants, ensuring optimal performance and extending bearing life. Suitable for use in industrial machinery, equipment, and tools, this bearing features an alloy steel construction, ABEC 1 rating, and a precision-crafted cage for smooth rotation and minimal vibration. Its compact size and durable design make it an ideal choice for applications where space is limited and reliability is paramount.
Top product features:
- Radial Ball Bearing provides support and rotation for mechanical applications.
- Double sealed closure protects against environmental contaminants.
- Dynamic Radial Load Capacity of 3,780 lbf allows for heavy-duty use.
Top product applications:
- Industrial machinery
- Automotive applications
- Medical equipment
Radial Ball Bearing, Bearing Industry Number R24, Bore Diameter 1 1/2 in, Closure Double Sealed, For Environment Oily/Greasy, Outer Ring Width 0.563 in, Outside Diameter 2 5/8 in, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Inch, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0/-0.00045 in, Dynamic Radial Load Capacity 3,780 lbf, Flange Diameter Not Applicable, Flange Thickness Not Applicable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.60
- Package Height: 1.20
- Package Weight: 0.40
Product info last updated on January 27, 2026 4:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
