Double Shielded Radial Ball Bearing, R4, 1/4 in Bore Dia, 5/8 in OD, 0.196 in W, 350 Degrees F Max Op Temp MPN:R4 ZZ PRX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0101206

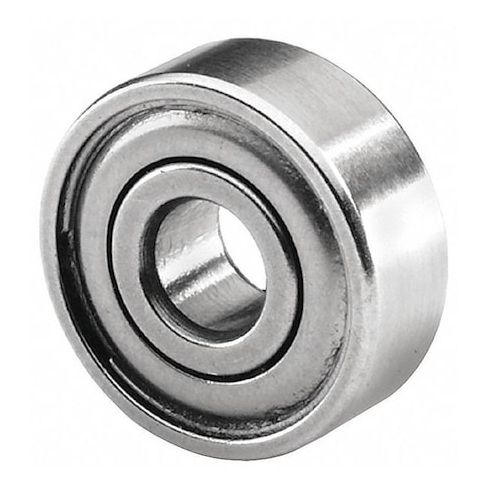

Double Shielded Radial Ball Bearing, R4, 1/4 in Bore Dia, 5/8 in OD, 0.196 in W, 350 Degrees F Max Op Temp
This Min Ball Bearing from Tritan is designed for use in applications where a small, high-performance bearing is required. Its 0.25In bore diameter and alloy steel construction make it ideal for use in environments with high levels of oil or grease. The double-shielded design provides excellent protection from contaminants and debris. With a dynamic radial load capacity of 335 lbf, this bearing can handle heavy loads and high speeds. Applications include use in motors, gearboxes, and other mechanical systems. Its compact size and high load capacity make it an excellent choice for a variety of industrial and commercial applications.
Top product features:
- Double Shielded for protection from contaminants in oily/greasy environments
- Alloy Steel Ring Material for high durability and resistance to wear
- Dynamic Radial Load Capacity of 335 lbf for heavy-duty applications
Top product applications:
- Robotics and automation systems
- Automotive parts and assemblies
- Precision machinery and equipment
Radial Ball Bearing, Bearing Industry Number R4, Bore Diameter 1/4 in, Closure Double Shielded, For Environment Oily/Greasy, Outer Ring Width 0.196 in, Outside Diameter 5/8 in, Ring Material Alloy Steel, System of Measurement Inch, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0/-0.0003 in, Dynamic Radial Load Capacity 335 lbf, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Flange Type Non-Flanged
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 0.80
- Package Weight: 0.02
