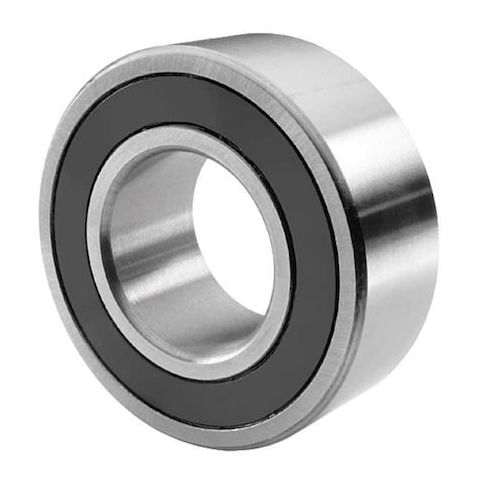

Angular Contact Ball Bearing, 2000lb., NBR MPN:5203 2RS/C3 PRX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0072847
Angular Contact Ball Bearing, 2000lb., NBR
This Angular Contact Ball Bearing is designed for high-speed applications, supporting loads of up to 2000lb and operating within a temperature range of -40°C to 175°C. With a maximum speed of 13,000 RPM, it's ideal for use in precision machinery, gearboxes, and high-performance equipment. The bearing's alloy steel construction and polyamide cage ensure durability and reduced friction. Its double-sealed design provides excellent protection against dust and moisture, making it suitable for use in harsh environments. Suitable applications include aerospace, automotive, and industrial machinery, as well as in high-speed motors and gearboxes.
Top product features:
- The bearing has a double sealed closure to prevent contamination and maintain lubrication.
- The bearing is designed for high-speed applications with a maximum speed of 13,000 RPM.
- The bearing has a temperature range of -40 to 175 degrees C, allowing for use in a variety of environments.
Top product applications:
- Precision machinery
- Automotive applications
- Industrial equipment
Angular Contact Ball Bearing, Ball Material Alloy Steel, Bearing Industry Number 3203/5203, Bore Diameter 17 mm, Cage Material Polyamide, Closure Double Sealed, Contact Bearing Type Angular Contact, Lubricant Material SRI 2 Grease, Polyrex EM Grease, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 13,000 RPM, Maximum Temperature 175 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows Two, Outside Diameter 40 mm, Overall Width 17.5 mm, Ring Material Alloy Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 0.60
- Package Weight: 0.20
Product info last updated on January 31, 2026 9:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
