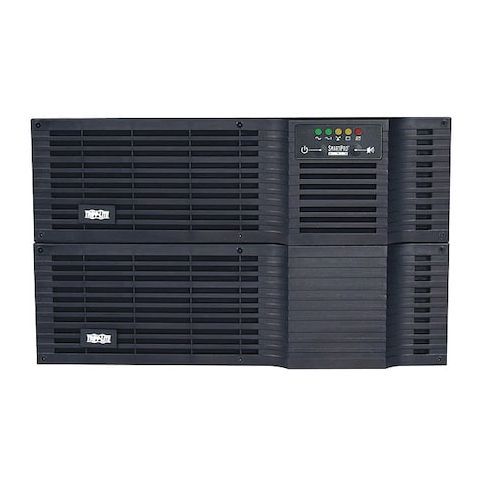

5kVA/4kW Rack/Tower Line-Interactive UPS 208V/120V MPN:SMART5000RT3U
Free Shipping
In Stock
The Tripp Lite SMART5000RT3U is a reliable and efficient line-interactive UPS designed for critical applications in data centers, server rooms, and other high-demand environments. With a 5kVA capacity and 208V AC input, it provides seamless power protection and automatic voltage regulation (AVR) for operation within a specified input voltage range. This UPS supports a wide range of applications, including servers, network equipment, and telecommunications gear, and offers benefits such as reduced downtime, improved data security, and increased productivity. Its hot-swappable batteries and user-serviceable design also make it an ideal choice for mission-critical systems.
Top product features:
- Automatic voltage regulation (AVR) for operation within the specified input voltage range and transfer thresholds.
- Output voltage regulation is maintained when input is within 151–282V.
- Eight individually switchable 5-15R load banks for remote power control/load shedding.
Top product applications:
- Data Center
- Server Room
- Network Operations Center
The TRIPP LITE SMART5000RT3U is a line-interactive rack/tower UPS 5 kVA (5000 VA) / 4 kW with a 208V AC input and selectable dual output voltages (110/115/120/208V). It includes automatic voltage regulation (AVR) for operation within the specified input voltage range and transfer thresholds (151–282V), and ships with a BP48V60RT3U external battery pack for a combined 6U rack height (3U UPS + 3U battery).
Key Features:
- Capacity: 5000 VA / 4000 W (power factor 0.8)
- output power may be limited
- this model supports an output of up to 4800 W when configured with hardwired connection or a 50A input per specifications.
- Topology and waveform: Line-interactive UPS
- output voltage regulation is maintained when input is within 151–282V per specifications
- AVR provides output regulation within the specified input voltage range of 151–282V.
- Voltage correction and transfer: Severe undervoltage boost for inputs 151–179V (24%)
- undervoltage for inputs 180–199V (12%)
- overvoltage for inputs 240–260V (12% reduction)
- high/low transfer setpoints 260V / 151V
- output voltage regulation of ±5% while operating in battery mode.
- Runtime and batteries: Half-load runtime 38 min (2000 W)
- full-load runtime 16 min (4000 W)
- sealed lead-acid (VRLA) batteries, 48 V DC system
- battery recharge time is specified as <4 hours for 10% to 90% state of charge
- battery replacement interval is specified as 6 years for the provided battery type under specified operating conditions
- batteries are designed for hot-swappable replacement and user-serviceable replacement per the manufacturer’s instructions
- external battery expansion models: BP48V24-2U, BP48V60RT-3U, BP48V27-2US.
- Outlets and load control: 14 total outlets—(10) 5-15R, (2) 5-20R, (1) L6-30R, (1) L14-30R
- eight individually switchable 5-15R load banks for remote power control/load shedding.
- Communications and management: Includes USB and DB9 cabling
- 4 built-in communications ports (2 DB9, 2 USB) plus contact-closure port
- SNMP/web card slot (SNMPWEBCARD/WEBCARDLX) and compatible with SNMPWEBCARD/WEBCARDLX and environmental sensors per manufacturer compatibility list.
- PowerAlert software included.
- Input and installation: Input 208V AC via 10 ft cord with NEMA L6-30P
- rated input current 24 A (30A input breaker required)
- 30A double-pole input breakers
- rackmount primary form factor with included 4POSTRAILKIT brackets (4-post 20.5–36 in).
- Indicators and alarms: Diagnostic LEDs covering 17 conditions
- 5 front-panel LEDs for power/voltage/battery/load status
- audible alarm for power-failure, overload and low-battery
- alarm-cancel/self-test switch.
- Physical and performance: UPS module dimensions 5.2 x 17.5 x 22.5 in (H x W x D)
- total rack height 6U (UPS + battery pack)
- efficiency is 0.94 at 100% load while operating in AC mode
- audible noise 45 dBA (front, 1 m)
- surge rating is 1,020 J
- EMI/RFI and data-line surge protection included.
- Additional features and compliance: EPO interface
- supports cold start per manufacturer specifications
- supports Watchdog and remote reboot options
- certifications: UL1778, CSA, NOM, FCC Part 15 Class A, RoHS.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.50
- Package Width: 24.00
- Package Height: 24.50
- Package Weight: 321.62
