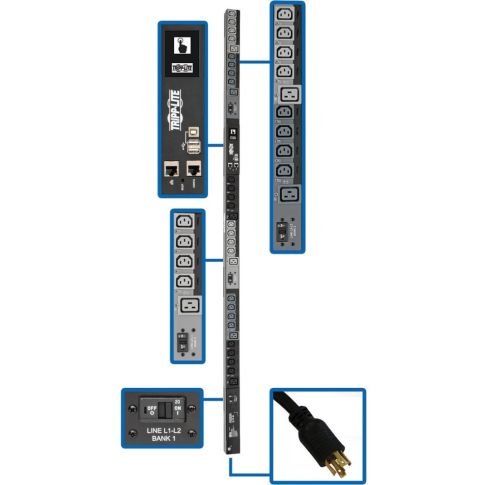

Tripp Lite 10kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, NEMA L2 - PDU3EVSR6L2130 MPN:PDU3EVSR6L2130
Free Shipping
In Stock
Introducing the Tripp Lite 10kW 3-Phase Switched PDU, an ideal solution for IT professionals and industrial users seeking advanced power management features. With 30 individually controllable outlets and a built-in Java-free HTML5-based LX Platform interface, this PDU enables remote power monitoring and network control to turn on, turn off, reboot or lock out power to each outlet. The included plug-lock insert sleeves prevent accidental disconnections while the six-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator, or protected UPS. The optional EnviroSense2 modules provide additional environmental monitoring capabilities. With its color touchscreen LCD, the 10kW 3-Phase Switched PDU enables users to monitor input and output current levels as well as network information via secure web browser, SNMP, telnet or SSH. Its mobile access option through QR code allows for easy access to the switchable PDU from a mobile device. The product's vertical mounting capabilities and included rack-mounting brackets make installation quick and simple in any rack environment, while its 10kW output and compatibility with three-phase power make it ideal for demanding applications.
Top product features:
- 30 individually controllable outlets
- Built-in LX Platform interface for remote access
- Optional EnviroSense2 modules for environmental monitoring capabilities
Top product applications:
- Data center management
- Server room monitoring and power control
- Mission-critical equipment protection
Features
- Brand Name: Eaton
- Cord Length: 6 ft
- Depth: 2-55/64 in.
- Dimensions: 70 in. X 2-11/64 in. X 2-55/64 in.
- Eco Label Standard: RoHS
- Height: 70 in.
- Manufacturer: TRIPP LITE
- Maximum Input Current: 24 V
- Model: PDU3EVSR6L2130
- Mount Type: Rack-mountable
- Mounting Orientation: Vertical
- Overload Protection: Yes
- Pdu Type: Switched
- Phase: Three Phase
- Plug/Connector Type: NEMA L21-30P
- Post Consumer Recycled Content Percentage: 0 %
- Power Rating (Watt): 10000
- Quantity: 1
- Rack Height: 0U
- Receptacle Detail: 6 x IEC 60320 C19; 24 x IEC 60320 C13
- Receptacle Type: IEC 60320 C19; IEC 60320 C13
- Total Quantity: 1 Power Distribution Units (PDUs)s
- Total Recycled Content Percentage: 0 %
- Warranty: 2-Year Limited
- Width: 2-11/64 in.
Additional Information
- Country of Origin: CN
- UNSPSC Code: 39121017
- UNSPSC Commodity: Power distribution units PDUs
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 76.00
- Package Width: 7.00
- Package Height: 10.00
- Package Weight: 18.00
Product info last updated on January 25, 2025 5:30am UTC Category: Batteries and Power Protection
