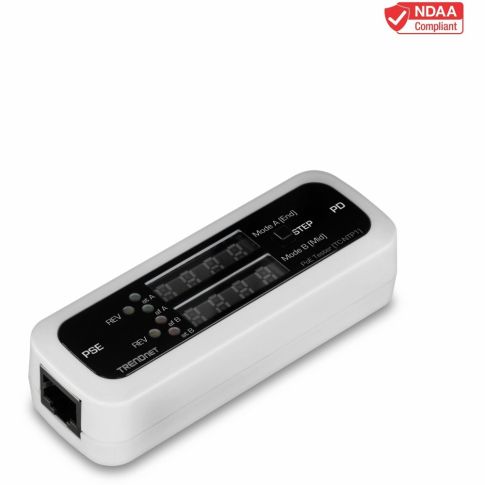

TRENDnet Inline PoE Tester, TC-NTP1, Tests 4PPoE, PoE+, PoE & Passive PoE Technology, Wattage, Voltage, Amperage, Polarity, LED Display, Batter MPN:TC-NTP1

TROUBLESHOOT IN REAL TIME: Troubleshoot PoE issues in real-time on-the-go and accurately test 4PPoE, PoE+, PoE, and passive PoE technologies with this compact and lightweight PoE testing tool. STEP BUTTON: The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring. TESTING MODES: The TC-NTP1 supports three testing functions. T-mode allows you to test your PSE device to determine the PoE switchs or injectors supported PoE standards, as well as voltage output. N-mode is used for non-standard passive PoE devices. I-mode is used for PoE inline testing, which displays the voltage, amperage, and wattage of the connected PD USER FRIENDLY: The TC-NTP1 PoE cable tester provides battery-free operation, and is ready for use right out of the box; just plug-in to start testing COMPATABILITY: The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V - 60V. NDAA compliant PORTS: This Inline PoE tester is equipped with 1 x Gigabit port for PSE connection, and 1 x Gigabit port for PoE Device connection
