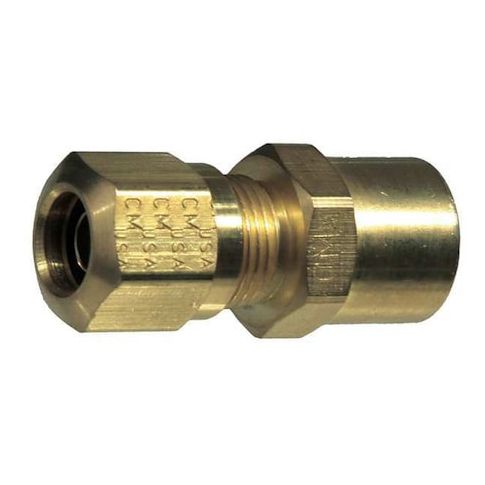

FemaleConnector, Compression, Brass, 1.19In MPN:966-6
FemaleConnector, Compression, Brass, 1.19In
The FemaleConnector, Compression, Brass, 1.19In from TRAMEC is a reliable and versatile fitting adapter designed for air applications. Its compression fitting allows for easy connection and disconnection, while its brass material ensures durability and resistance to corrosion. With a maximum operating pressure of 150 psi and temperature of 200°F, this adapter is suitable for a variety of applications, including pneumatic systems, air tools, and industrial equipment. Its compact design and straight shape make it ideal for use in tight spaces, providing a secure and reliable connection for efficient system operation.
Top product features:
- Compression Fitting Adapter connects two components with a compression fitting on one side and an FNPT connection on the other.
- The adapter allows for the connection of a tube with a 3/8 in outer diameter to a pipe with a 1/4 in size.
- The adapter is designed to withstand a maximum operating pressure of 150 psi and a maximum operating temperature of 200 Degrees F.
Top product applications:
- Air Fitting Adapter
- Air Fitting Adapter
- Fitting for Air Systems
Compression Fitting Adapter, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 3/16 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/4 in, Compatible Fitting Brands Not Applicable, Thread Size B 1/4-18, System of Measurement Imperial, Standards SAE J246
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.50
- Package Height: 4.70
- Package Weight: 0.30
