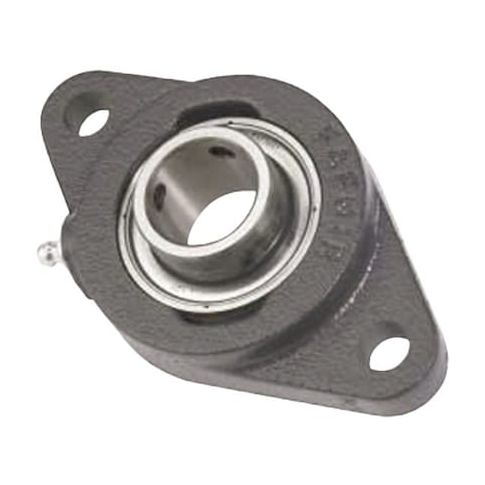

2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 1-3/16 in Dia, Cast Iron, Set Screw MPN:YCJTM 1 3/16 SGT
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 1-3/16 in Dia, Cast Iron, Set Screw
This Flange Mount Bearing from Timken is designed for heavy-duty applications, featuring a robust alloy steel bearing insert and a cast iron housing. With a maximum speed of 5600 RPM and a temperature range of -40 to 250 degrees F, it can withstand demanding conditions. The double-sealed closure ensures long-lasting performance and minimal maintenance. Suitable for use in industrial machinery, agricultural equipment, and other high-impact applications, this bearing provides reliable support and smooth operation. Its compact size and fixed expansion type make it easy to integrate into existing systems, offering a cost-effective solution for heavy-duty operations.
Top product features:
- Double sealed closure for protection against contamination and debris
- Fixed expansion type for secure fit and reduced vibration
- Lithium complex grease lubrication for reduced wear and extended bearing life
Top product applications:
- Heavy Equipment
- Industrial Machinery
- Aerospace Equipment
Flange Mount Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 13/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYM1103KRRB SGT, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 5600 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 3.90
- Package Weight: 3.05
Product info last updated on February 5, 2026 11:13pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
