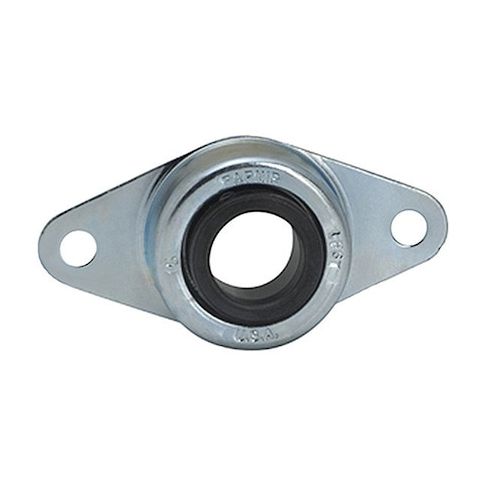

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 1 in Dia, Steel, Collar Locking MPN:LFST1
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 1 in Dia, Steel, Collar Locking
The Timken Flange Mount Ball Bearing is a versatile and reliable solution for a variety of applications. With a bore diameter of 1 inch and a center height of 1 1/8 inches, this bearing is ideal for use in high-speed machinery and equipment. The double-sealed design and fixed expansion type ensure long-lasting performance and protection from harsh environments. Suitable for use in temperatures ranging from -40 to 250 degrees F, this bearing is perfect for applications in the aerospace, automotive, and industrial sectors, including gearboxes, pumps, and other machinery where high-speed operation is critical.
Top product features:
- Double sealed for protection against dust and contaminants
- Radial ball bearing design for smooth rotation and reduced friction
- Lithium complex grease lubricant for extended bearing life and reduced maintenance
Top product applications:
- High-speed machinery such as power tools and machinery
- Industrial equipment such as pumps and gearboxes
- Aerospace applications requiring high-speed and high-temperature capabilities
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 1/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Steel, Housing Type Rhombus, Included Bearing RAL100NPP, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 6700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height Not Applicable, Number of Mount Holes 2
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.45
Product info last updated on March 18, 2026 7:29am UTC
Category: Bearings, V-belts and Power Transmission Equipment
