Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore MPN:SCJT 1 3/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7816943

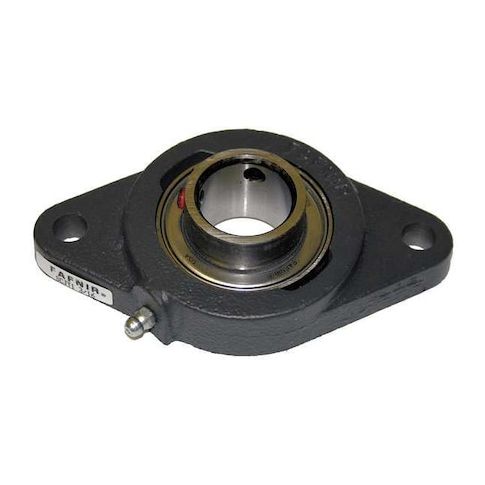

Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore
The Timken 2-Bolt Flange Bearing is a high-performance bearing designed for heavy-duty applications. Its alloy steel bearing insert and cast iron housing provide exceptional strength and durability. The radial ball bearing design offers smooth operation and long lifespan, while the double-sealed closure protects against contaminants. With a maximum speed of 4,640 RPM and operating temperature range of -65°F to 200°F, this bearing is ideal for use in industrial machinery, equipment, and manufacturing processes. Its compact size and fixed expansion type make it suitable for a wide range of applications, including gearboxes, motors, and pumps.
Top product features:
- Double sealed to protect against contaminants and debris
- Radial ball bearing design for smooth rotation and reduced friction
- Fixed expansion type for secure mounting and vibration resistance
Top product applications:
- Heavy Duty Industrial Equipment
- High-Speed Motors
- Power Generation Systems
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYA103RRB, Lubricant Material NLGI #2 Equivalent, Maximum Speed 4,640 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -65 Degrees F, Number of Mount Holes 2, Overall Height 3 1/8 in, Overall Length 5 9/16 in, Overall Width 1 21/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.60
- Package Height: 2.30
- Package Weight: 1.85
Product info last updated on February 11, 2026 9:16am UTC
Category: Bearings, V-belts and Power Transmission Equipment
