4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw MPN:YCJM2
4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw

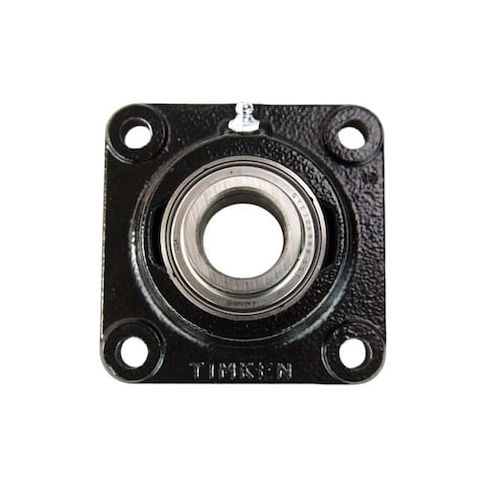

The Timken Flange Mount Ball Bearing is a reliable and efficient solution for a variety of applications, including heavy-duty industrial machinery, construction equipment, and agricultural machinery. Its alloy steel bearing insert and cast iron housing provide exceptional durability and resistance to wear and tear. The bearing's radial ball design and double sealed closure ensure smooth operation and protection from contaminants. With a temperature range of -40 to 250 degrees F and a maximum speed of 3400 RPM, this bearing is ideal for use in demanding environments. Its compact size and fixed expansion type make it easy to integrate into new or existing systems.
Top product features:
- Fixed Expansion Type provides a secure fit in the housing.
- Double Sealed Closure protects the bearing from environmental contaminants and debris.
- NLGI 2 Lithium Complex Grease provides long-lasting lubrication.
Top product applications:
- Heavy Industrial Equipment
- High-Speed Pumps and Compressors
- Food Processing Machinery
Flange Mount Bearing, Back Side to Center Width 1.236 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height 3 3/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing GY1200KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3400 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 6.90
- Package Height: 3.40
- Package Weight: 7.50
Product info last updated on April 13, 2026 8:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
