2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw MPN:YCJT 5/8
2 Holes, Rhombus Housing, Flange Mount Bearing, Radial Ball, 5/8 in Dia, Cast Iron, Set Screw

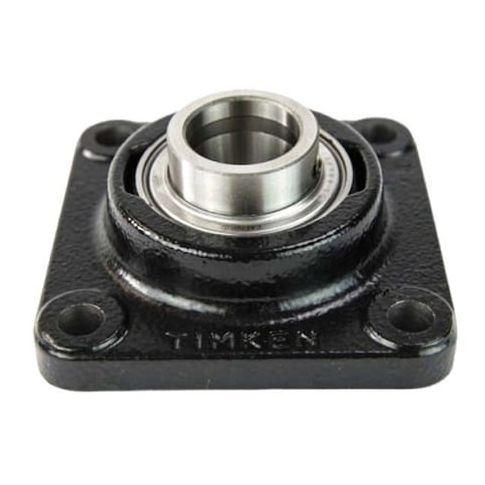

This Flange Mount Bearing from Timken is a reliable and versatile solution for demanding applications. Suitable for use in harsh environments, it operates within a wide temperature range of -40 to 250°F and reaches speeds of up to 10,900 RPM. The bearing's alloy steel insert and cast iron housing provide exceptional strength and durability. Ideal for applications such as conveyor systems, pumps, and gearboxes, this bearing offers reduced maintenance and increased productivity. Its compact design and fixed expansion type make it easy to install and integrate into existing systems, making it a valuable addition to any industrial setting.
Top product features:
- The bearing is a radial ball bearing.
- It is double sealed for protection from contaminants.
- It is designed for use in applications with temperatures up to 250 Degrees F.
Top product applications:
- Conveyor systems for heavy-duty applications
- Industrial machinery such as pumps and gearboxes
- High-speed machinery such as printing presses
Flange Mount Bearing, Back Side to Center Width 0.453 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 5/8 in, Bore Type Cylindrical, Center Height 1 1/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GY1010KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 10900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.81
