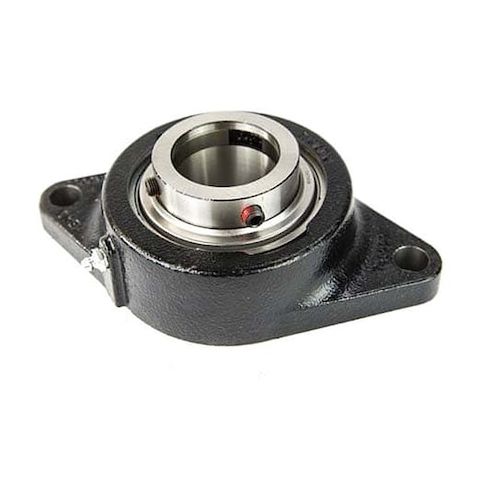

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking MPN:YCJT 20 SGT
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking
The Timken Flange Mount Bearing is a reliable and versatile solution for various industrial applications. Its 20 mm diameter and cylindrical bore design make it ideal for use in high-speed machinery, such as gearboxes, pumps, and compressors. The bearing's alloy steel insert and cast iron housing provide exceptional durability and resistance to corrosion. With a maximum operating temperature of 250°F and a minimum operating temperature of -40°F, this bearing can handle a wide range of applications, including aerospace, automotive, and heavy machinery. Its double-sealed design ensures long-lasting lubrication and minimizes maintenance requirements.
Top product features:
- Double sealed closure to protect against contamination and moisture
- Radial ball bearing design for smooth and quiet operation
- Cylindrical bore diameter of 20 mm for precise fit and reduced vibration
Top product applications:
- High-precision machinery
- Industrial equipment
- Aerospace applications
Flange Mount Bearing, Back Side to Center Width 19.3 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Center Height 30.15 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYE20KRRB SGT, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 8750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: CA
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 1.73
