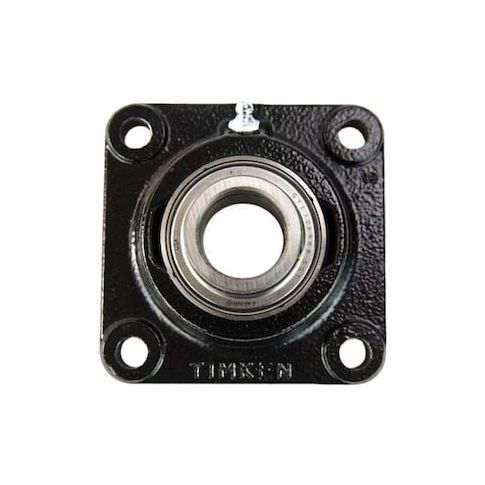

4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 2-15/16 in Dia, Cast Iron, Set Screw MPN:YCJ 2 15/16
4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 2-15/16 in Dia, Cast Iron, Set Screw
The Timken Flange Mount Ball Bearing is a reliable and durable solution for heavy-duty applications. With a maximum speed of 2300 RPM and operating temperature range of -40 to 250 degrees F, this bearing can withstand even the most demanding conditions. Its double-sealed design and NLGI 2 lithium complex grease ensure long-lasting lubrication and protection from contaminants. Ideal for use in industrial equipment, machinery, and automation, this bearing is suitable for applications such as conveyor systems, gearboxes, and pumps. Its compact size and easy installation make it a convenient choice for engineers and maintenance professionals.
Top product features:
- Double sealed closure protects the bearing from contaminants and debris
- Cylindrical bore provides a smooth surface for the ball bearing to rotate on
- Fixed expansion type provides consistent and reliable performance in a wide temperature range
Top product applications:
- Heavy Duty Construction Equipment
- Industrial Conveyors and Material Handling Systems
- High-Speed Pumps and Compressors
Flange Mount Bearing, Back Side to Center Width 1.646 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 15/16 in, Bore Type Cylindrical, Center Height 3 7/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing GY1215KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 2300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.80
- Package Height: 4.00
- Package Weight: 16.55
Product info last updated on February 24, 2026 8:11pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
