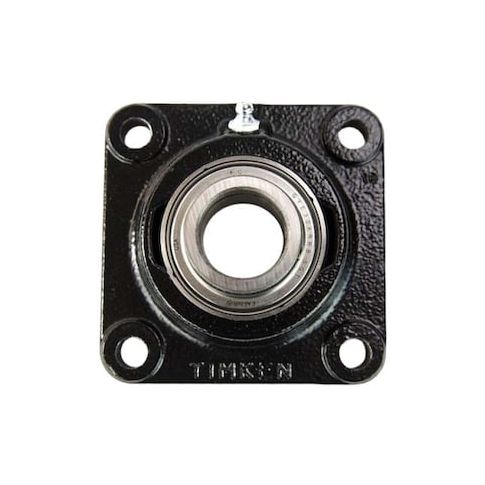

4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 2-15/16 in Dia, Cast Iron, Set Screw Locking MPN:YCJM 2 15/16
4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 2-15/16 in Dia, Cast Iron, Set Screw Locking
The Timken Flange Mount Ball Bearing is a reliable and durable solution for heavy-duty applications. Its alloy steel bearing insert and cast iron housing provide exceptional strength and resistance to wear and tear. With a maximum speed of 2300 RPM and a temperature range of -40 to 250 degrees F, this bearing is suitable for use in a variety of industries, including manufacturing, mining, and construction. Its double sealed design ensures long-lasting performance and requires minimal maintenance. The bearing's fixed expansion type and square housing make it easy to install and integrate into existing systems.
Top product features:
- Flange Mount design allows for easy installation and secure mounting
- Double sealed closure provides protection from dust and contaminants
- NLGI 2 Lithium Complex Grease lubricant ensures smooth operation and long bearing life
Top product applications:
- Heavy Duty Industrial Equipment
- High-Speed Machinery
- Aerospace and Defense
Flange Mount Bearing, Back Side to Center Width 1.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 15/16 in, Bore Type Cylindrical, Center Height 3 7/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing GYM1215KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 2300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.20
- Package Height: 4.10
- Package Weight: 18.10
Product info last updated on March 27, 2026 4:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
